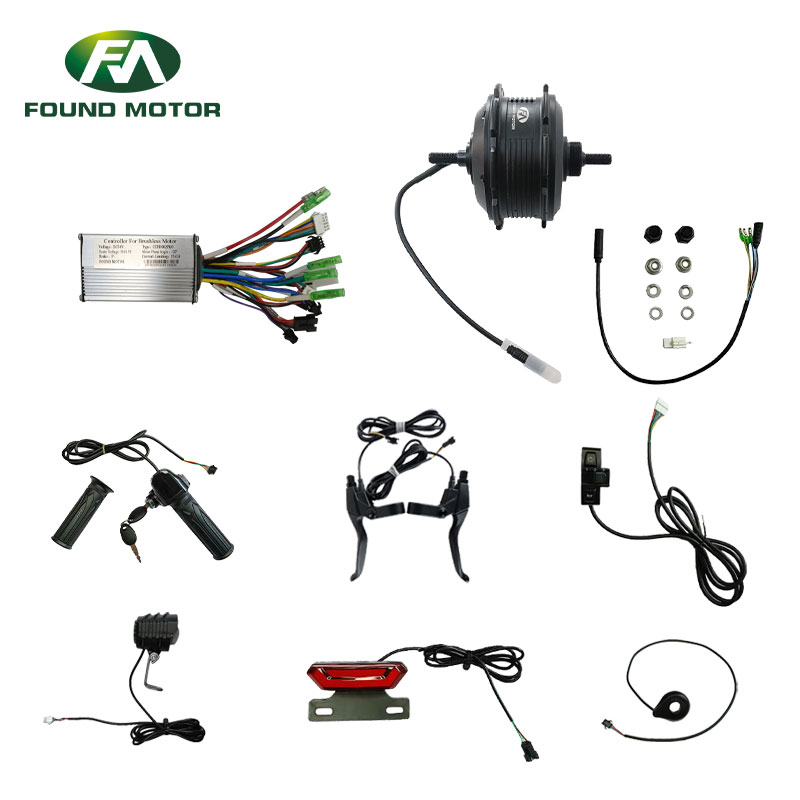

36V 250W Electric Bike Conversion Kit | 125mm Narrow Dropout with Sinewave Controller & 12-Magnet PAS
复制
| Component | Model | Details |
|---|---|---|
| Motor | FM-01-01-N92Z | 36V 250W BLDC geared rear-drive spoke motor, rated speed 30KM/H, 26" wheel |
| Dropout | 125mm (Open Size) | Disk brake cover left, motor cable left, suitable for single-speed freewheel |
| Controller | CZFD002SD | DC 36V sinewave controller, current-limiting 15±1A, normal connectors for all components |
| Throttle | TT87 | Full twist throttle with battery indicator and electronic lock, cable length 1500mm; half twist or thumb throttle optional |
| Brake Lever | N133 | Brake lever with motor cut-off switch, normal connector, cable length 1500mm |
| PAS Sensor | SW003 | Dual hall sensors, 12 magnets, left side mounting, cable length 600mm, normal connector |
| Switch | DK21-1S | Light/horn switch with normal connector, cable length 1500mm |
| Front Light | D-022 | Integrated front light and horn unit, normal connector, cable length 1500mm |
| Cable System | Waterproof | Motor waterproof connector with 260mm extension cable + 500mm normal connector |
| Accessories | Standard | Dacro screws, gaskets, black rubber sleeve included |
| Customization | OEM Available | Customized logo on motor shell, color options: black/silver |
