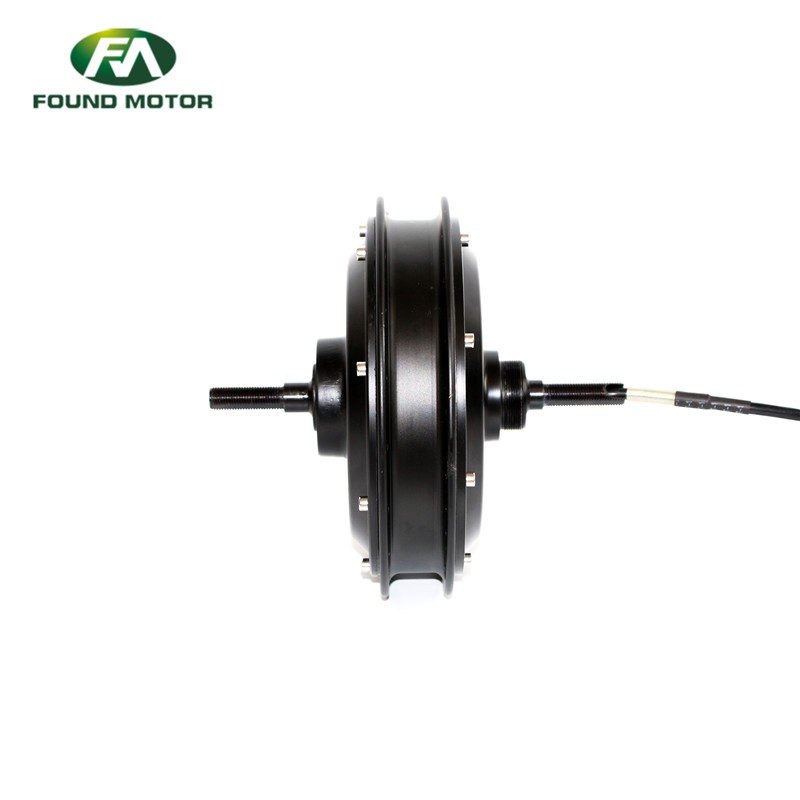

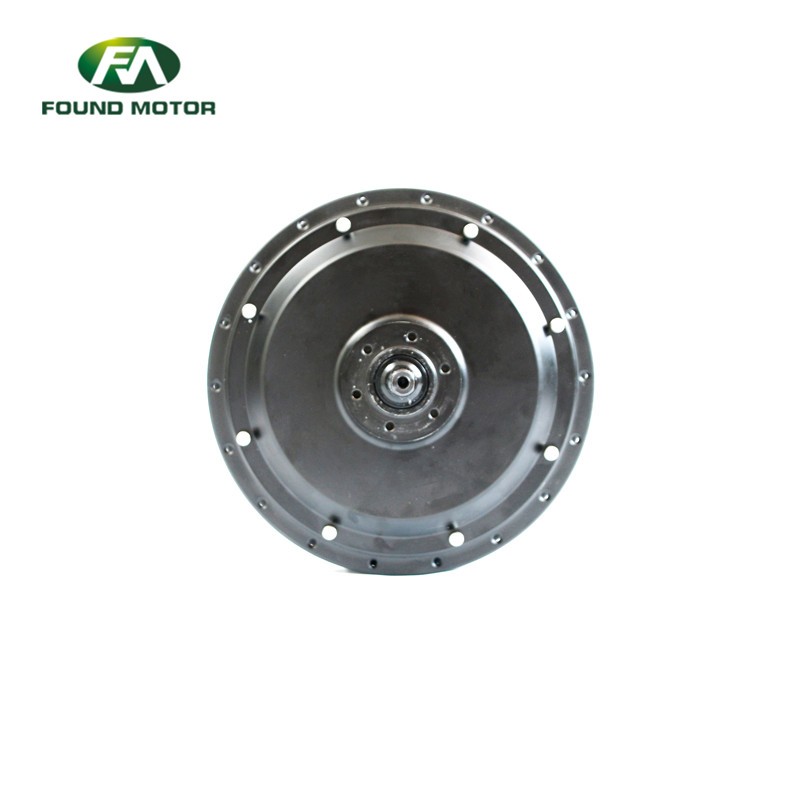

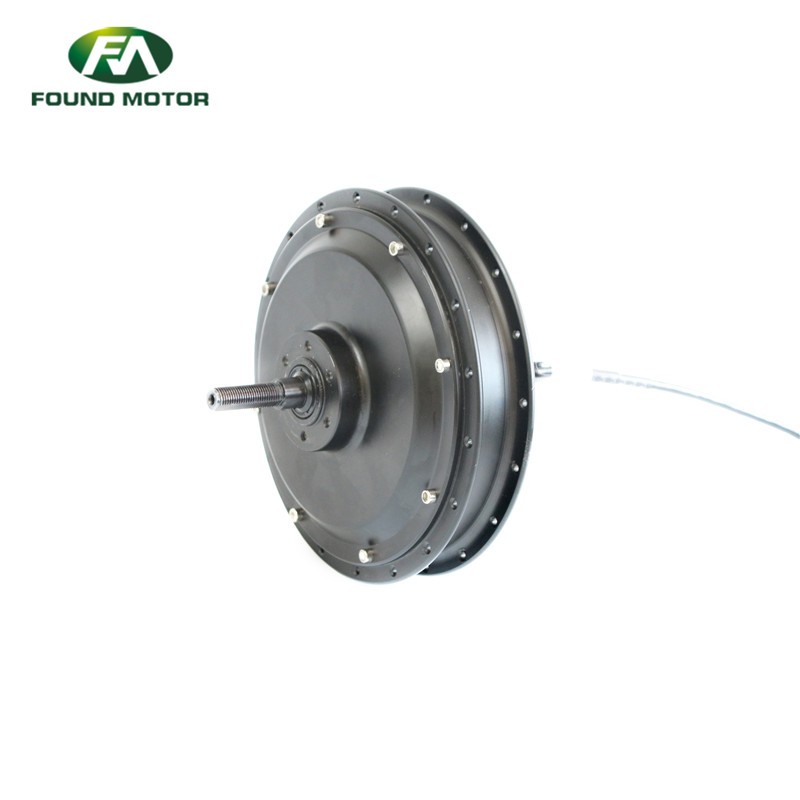

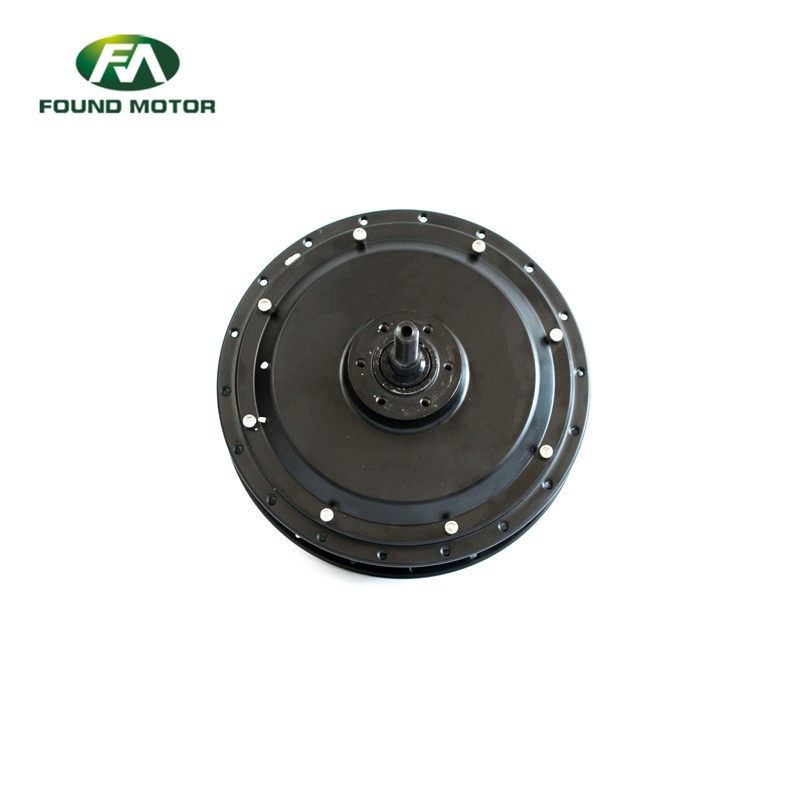

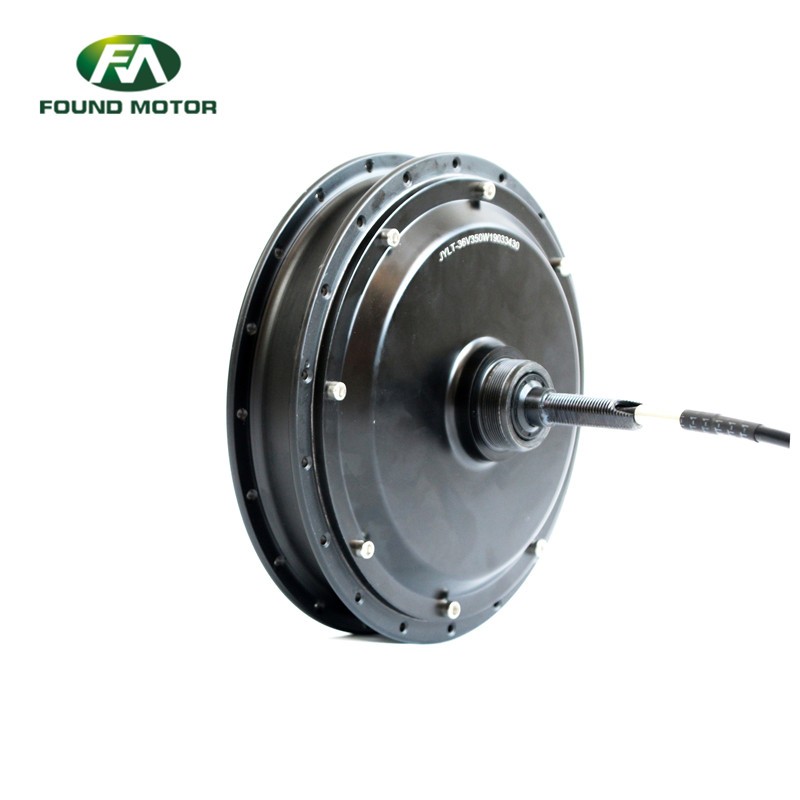

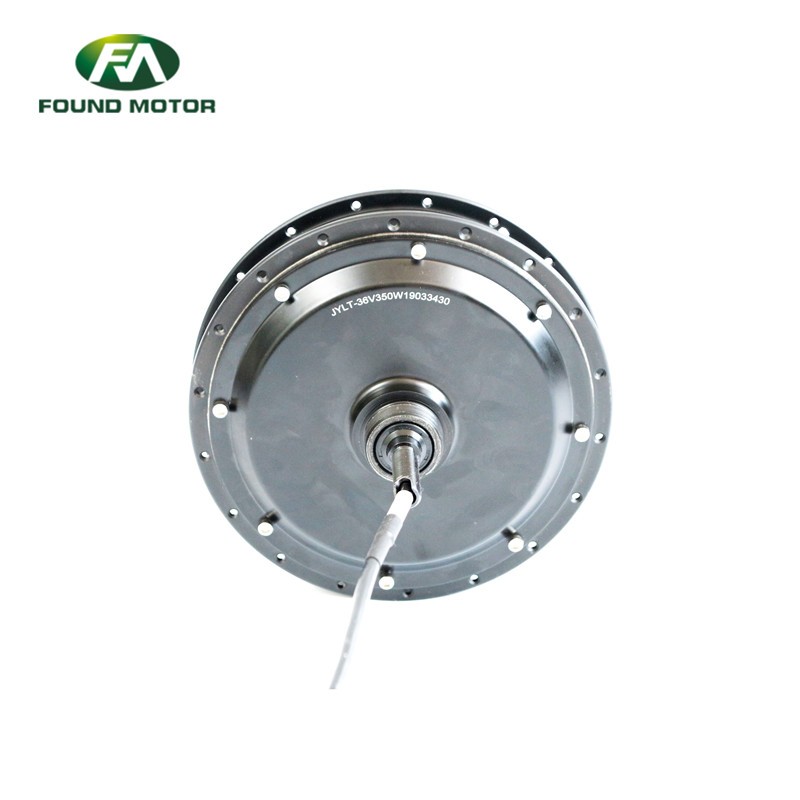

FM-01-02-154R Electric Bike Motor | 24V-48V 180W-500W Brushless Rear Hub 36H | 135mm 6-9 Speed
| Specification | Details |
|---|---|
| Model | FM-01-02-154R |
| Motor Type | Brushless DC Rear Hub Motor (Direct Drive) |
| Rated Voltage | 24V / 36V / 48V (Wide Voltage Compatible) |
| Rated Power | 180W - 500W (High Power Range for Demanding Applications) |
| Wheel Size Compatibility | 14" - 28" (Spoke Specification: 12G/13G) |
| Spoke Holes | 36 holes (Heavy-Duty Design for Enhanced Load Capacity) |
| Rated Speed | 25 km/h |
| Rated Efficiency | ≥80% |
| Reduction Ratio | N/A (Direct Drive Motor) |
| Weight | 4.2 kg (Heavier Duty Construction) |
| Dropout (Open Size) | 135mm (Standard Frame Compatible) |
| Drive Type | Rear Drive |
| Freewheel | 6-9 Speed (Multi-Speed Compatible) |
| Brake Compatibility | V-Brake / Disc Brake (Dual Option) |
| Cable Location | Optional (Customizable) |
| Hall Sensor | Optional |
| Integrated Speed Sensor | Optional |
| Surface Color | Black / Silver |
| Waterproof Grade | IP54 / IP65 (Optional) |
| Noise Level | <55 dB (Ultra-Quiet Operation) |
| Salt Fog Test | 24h / 96h (Corrosion Resistance) |
| Certifications | CE, ROHS, FCC (Standard) |
