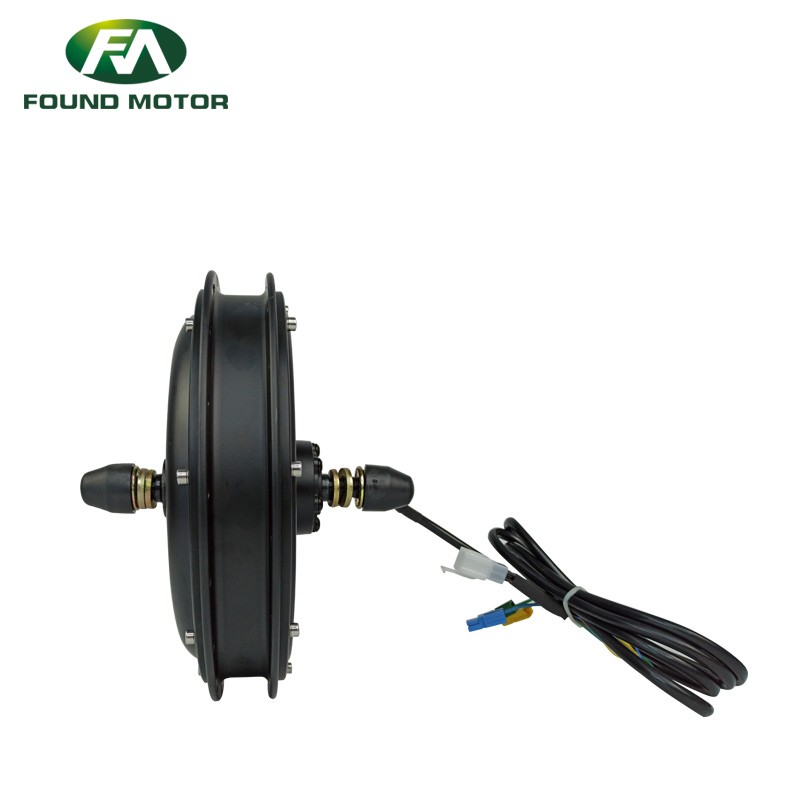

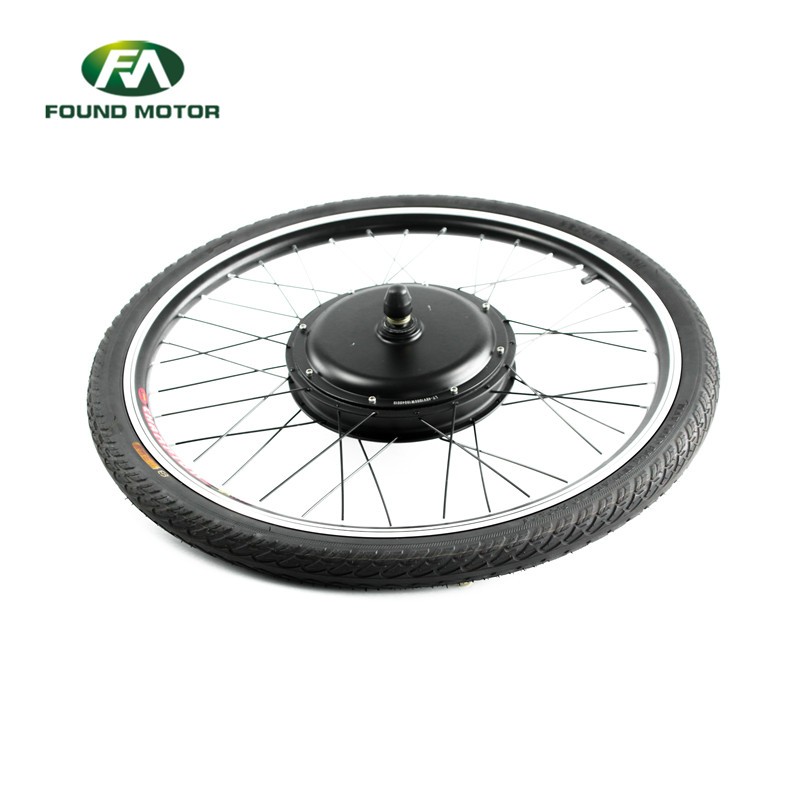

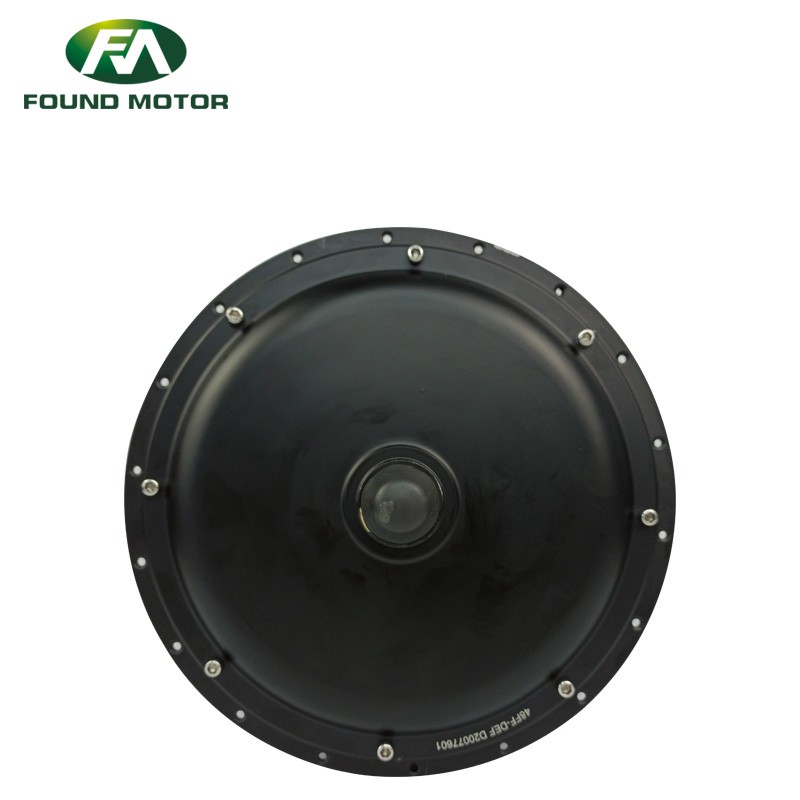

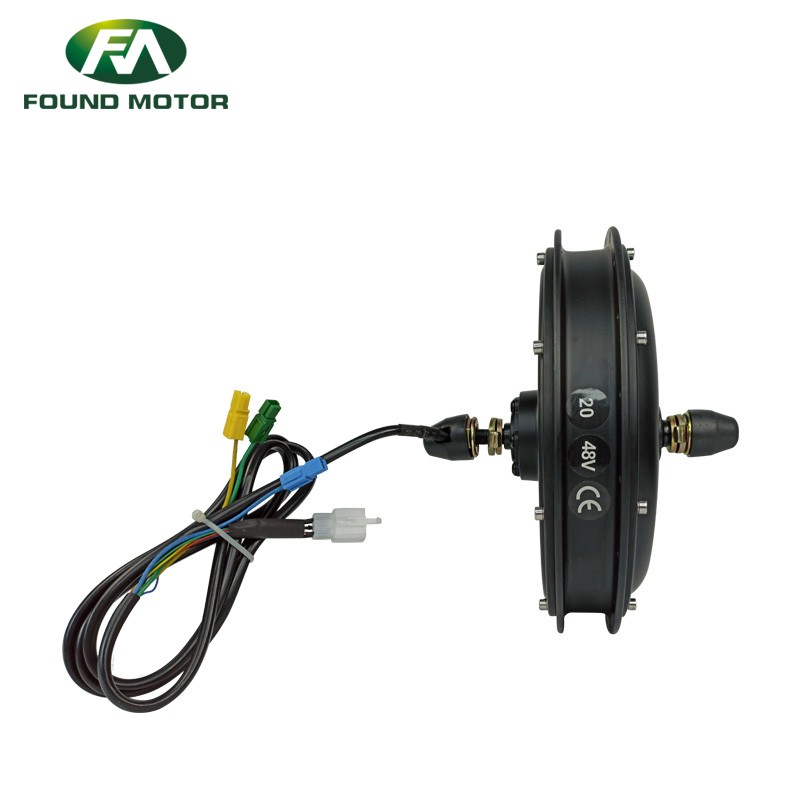

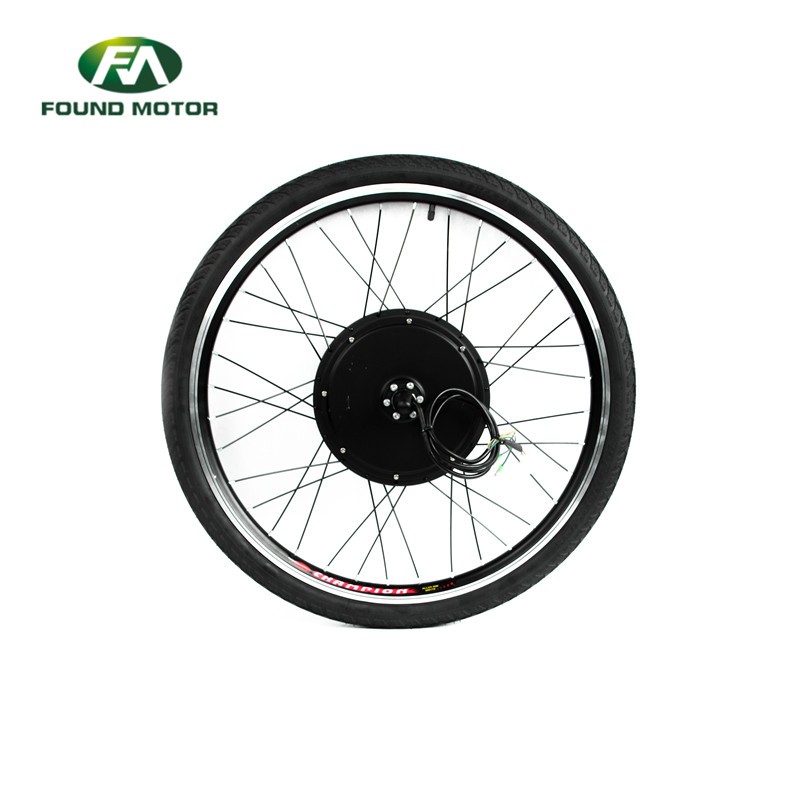

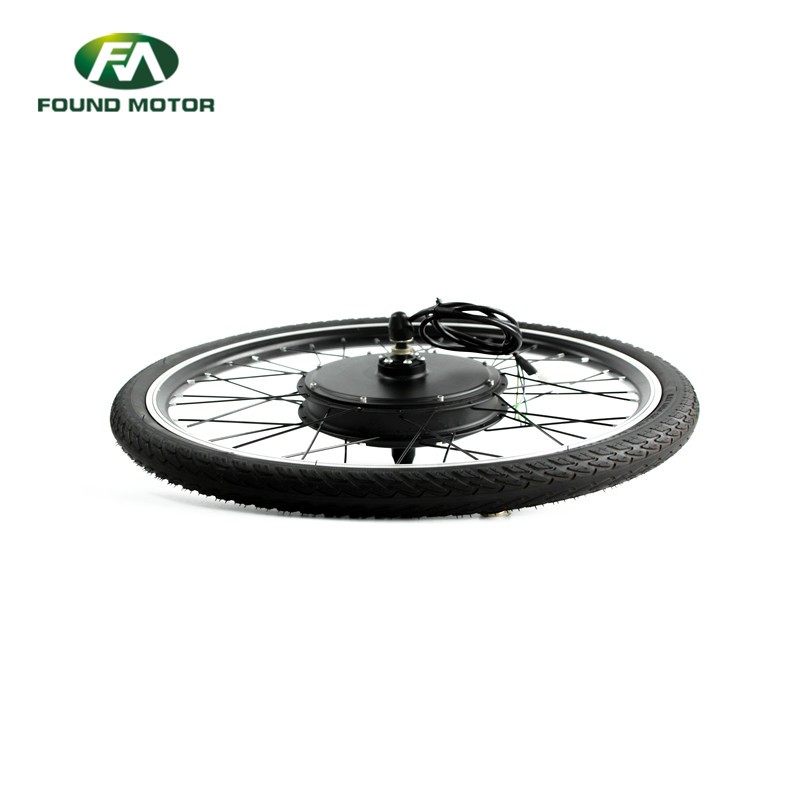

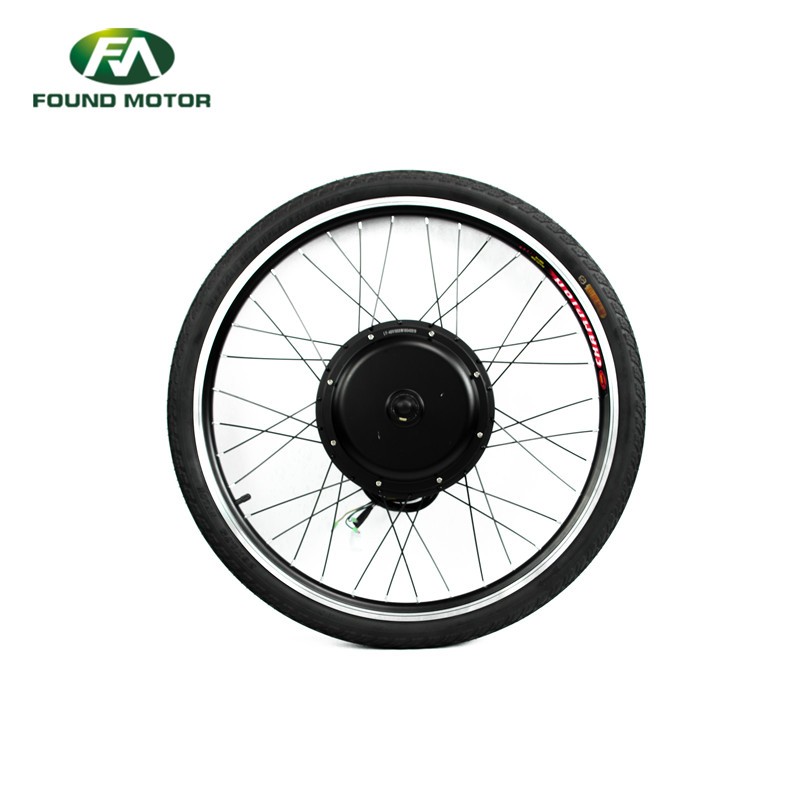

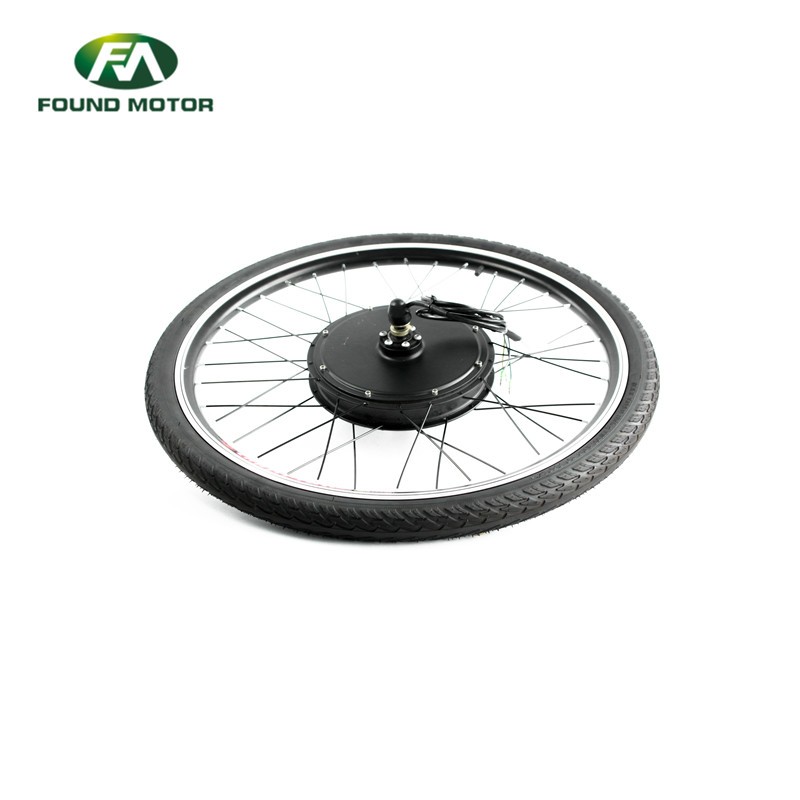

FM-01-02-205A-35F Front Hub Motor | 24V-48V 180W-1000W Brushless 36H | Dropout 135mm Folding Bike Ebike
| Specification | Details |
|---|---|
| Model | FM-01-02-205A-35F |
| Motor Type | Brushless DC Front Hub Motor (Direct Drive) |
| Rated Voltage | 24V / 36V / 48V (Wide Voltage Compatible) |
| Rated Power | 180W - 1000W (Ultra-Wide Power Range) |
| Wheel Size Compatibility | 14" - 28" (Spoke Specification: 12G/13G) |
| Spoke Holes | 36 holes (Heavy-Duty Design) |
| Rated Speed | 25 km/h |
| Rated Efficiency | ≥80% |
| Reduction Ratio | N/A (Direct Drive Motor) |
| Weight | 6.1 kg |
| Dropout (Open Size) | 100mm (Ultra-Narrow for Folding Bikes) |
| Drive Type | Front Drive (No Freewheel) |
| Freewheel | No Freewheel (Direct Drive) |
| Brake Compatibility | V-Brake / Disc Brake (Dual Option) |
| Cable Location | Optional (Customizable) |
| Hall Sensor | Optional |
| Integrated Speed Sensor | Optional |
| Surface Color | Black / Silver |
| Waterproof Grade | IP54 / IP65 (Optional) |
| Noise Level | <55 dB (Ultra-Quiet Operation) |
| Salt Fog Test | 24h / 96h (Corrosion Resistance) |
| Certifications | CE, ROHS, FCC (Standard) |
