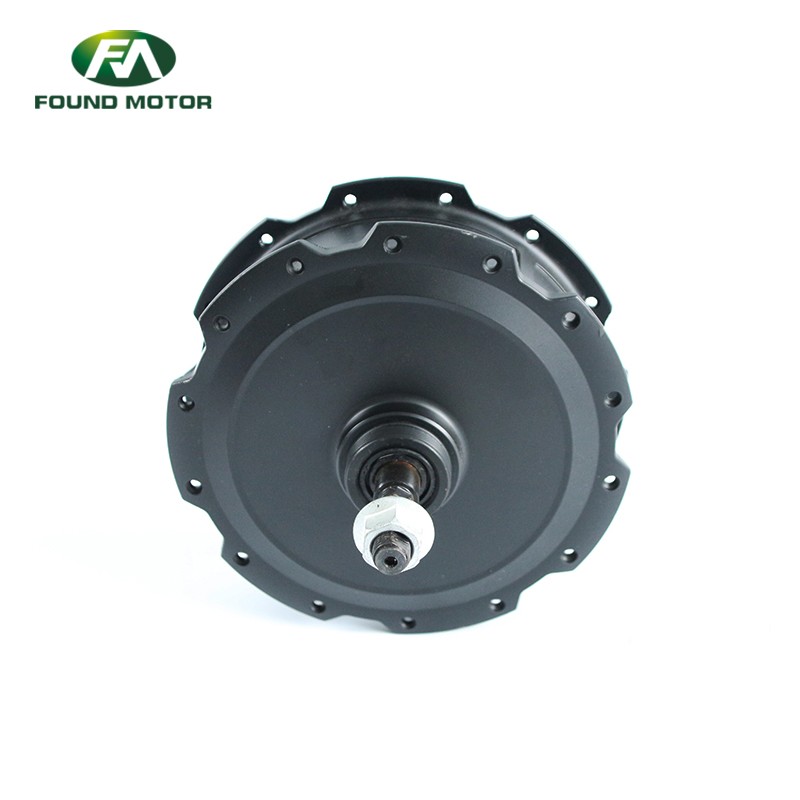

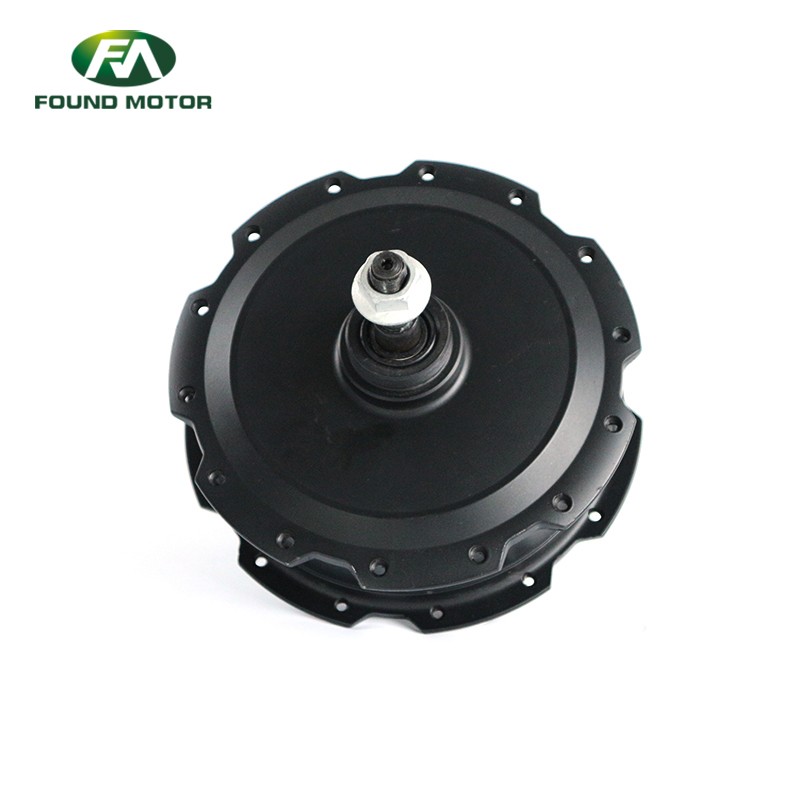

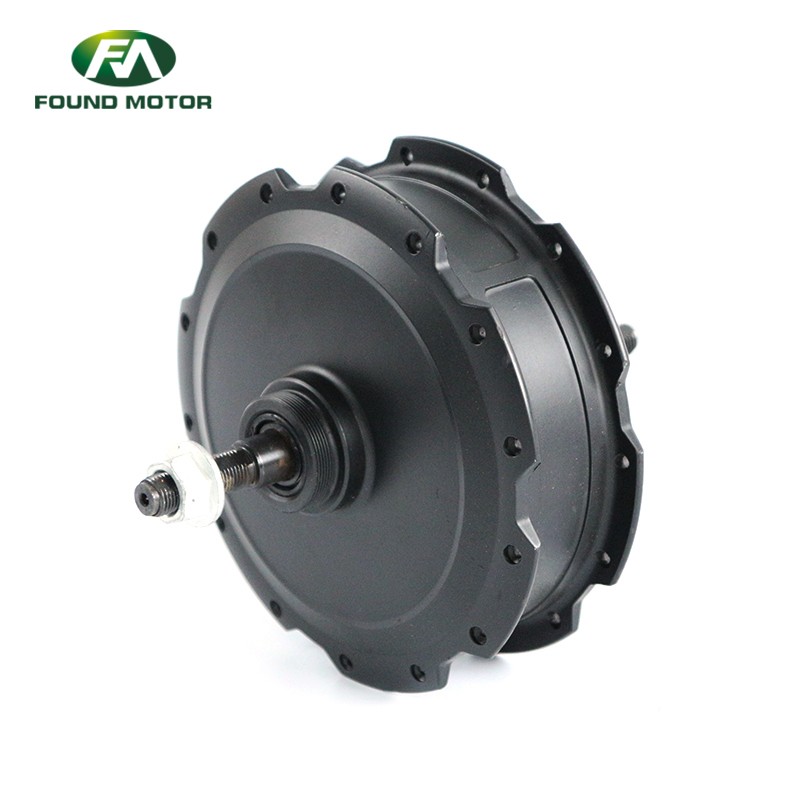

FM-01-02-112A Electric Bike Motor | 24V 36V 48V 180W-350W Brushless Rear Hub | 125mm Single Speed
| Specification | Details |
|---|---|
| Model | FM-01-02-112A |
| Motor Type | Brushless DC Rear Hub Motor (Direct Drive) |
| Rated Voltage | 24V / 36V / 48V / 52V (Wide Voltage Compatible) |
| Rated Power | 180W - 350W (Adjustable based on voltage) |
| Wheel Size Compatibility | 14" - 28" (Spoke Specification: 12G/13G) |
| Spoke Holes | 28 holes |
| Rated Speed | 25 km/h |
| Rated Efficiency | ≥80% |
| Reduction Ratio | N/A (Direct Drive Motor) |
| Weight | 3.8 kg |
| Dropout (Open Size) | 125mm (Narrow Frame Compatible) |
| Drive Type | Rear Drive |
| Freewheel | Single Speed (1S) |
| Brake Compatibility | V-Brake / Disc Brake (Dual Option) |
| Cable Location | Optional (Customizable) |
| Hall Sensor | Optional |
| Integrated Speed Sensor | Optional |
| Surface Color | Black / Silver |
| Waterproof Grade | IP54 / IP65 (Optional) |
| Noise Level | <55 dB (Ultra-Quiet Operation) |
| Salt Fog Test | 24h / 96h (Corrosion Resistance) |
| Certifications | CE, ROHS, FCC (Standard) |
