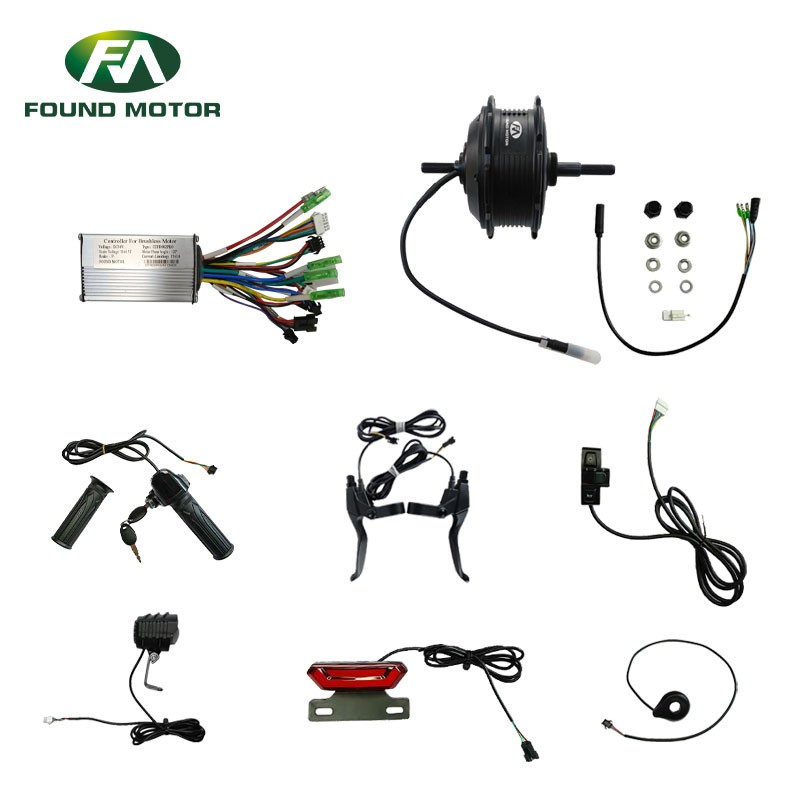

36V 250W Electric Bike Conversion Kit | Waterproof Rear Hub Motor with Sine Wave Controller | 125mm/135mm Dropout
| Component | Model | Technical Data |
|---|---|---|
| Motor Options | FM-01-01-N92H | 36V 250W BLDC geared rear-drive, 135mm dropout (6-9 speed compatible), 26", 30KM/H |
| Controller | CZFD003PRO | DC 36V sine wave controller, current-limiting 15±1A, 8S auto cruise function |

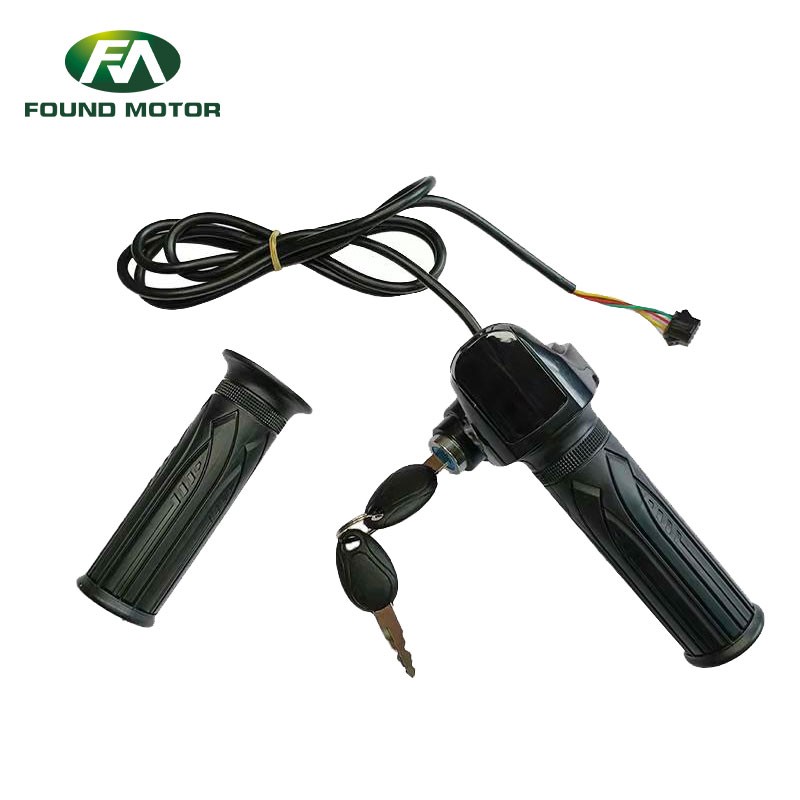

| Throttle | TT87 | Full twist throttle with battery indicator, electronic lock, 1500mm cable |
| Brake Lever | N133 | Brake lever with motor cut-off switch, normal connector, 1500mm cable |

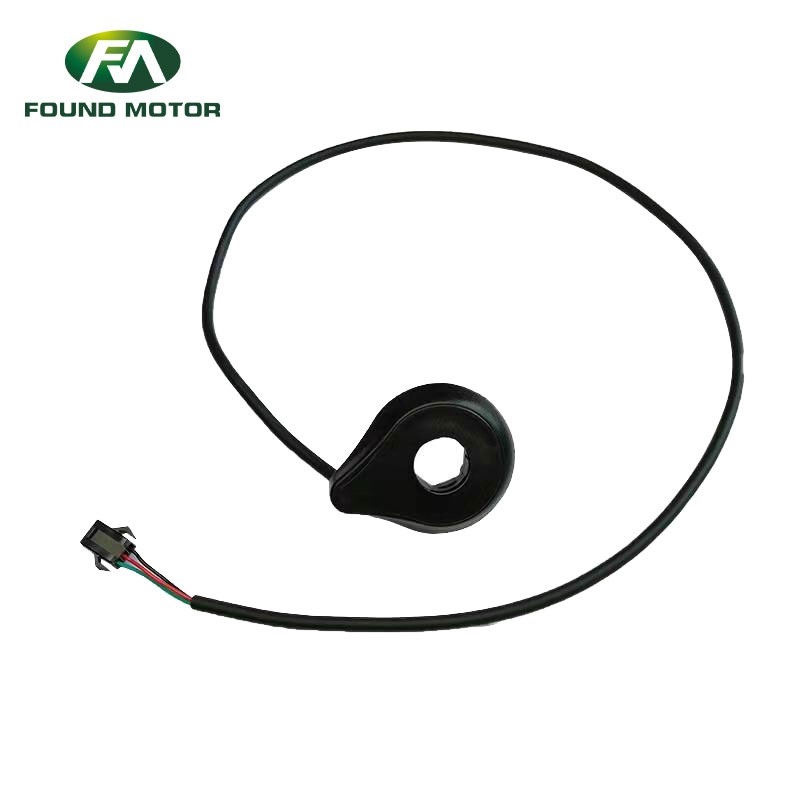

| PAS Sensor | SW003 | Dual hall sensors, 12 magnets, left side mounting, 600mm cable |

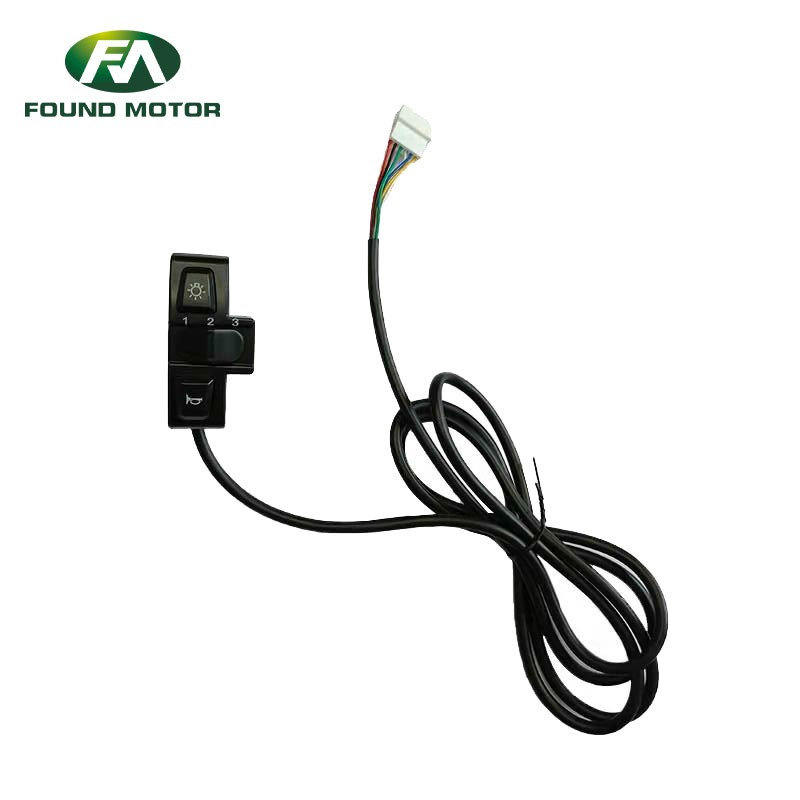

| Switch | DK31-1S | Light/horn switch with 3-level PAS adjustment, 1500mm cable |

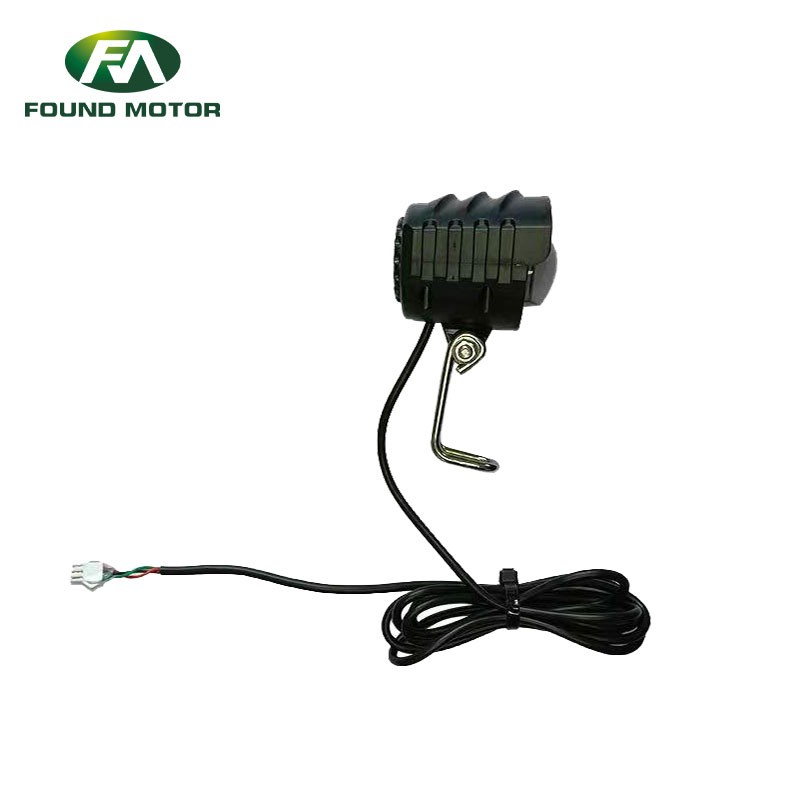

| Front Light | D-022 | Integrated front light and horn unit, 1500mm cable |

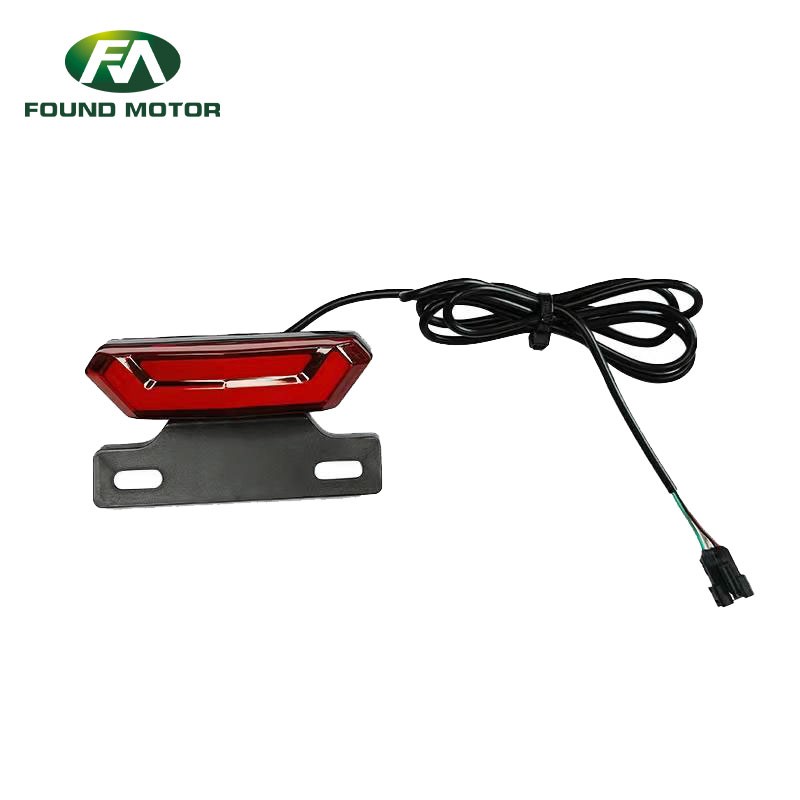

| Rear Light | WD-10C | Rear light with brake light function, 1500mm cable |
| Cable System | Waterproof | Motor cable with waterproof connector + 260mm extension + 500mm normal connector |
| Installation | Standard | Disk brake cover left, motor cable left, includes Dacro screws, gaskets, rubber sleeve |
| Customization | OEM | Customized logo available on motor shell, black/silver color options |
