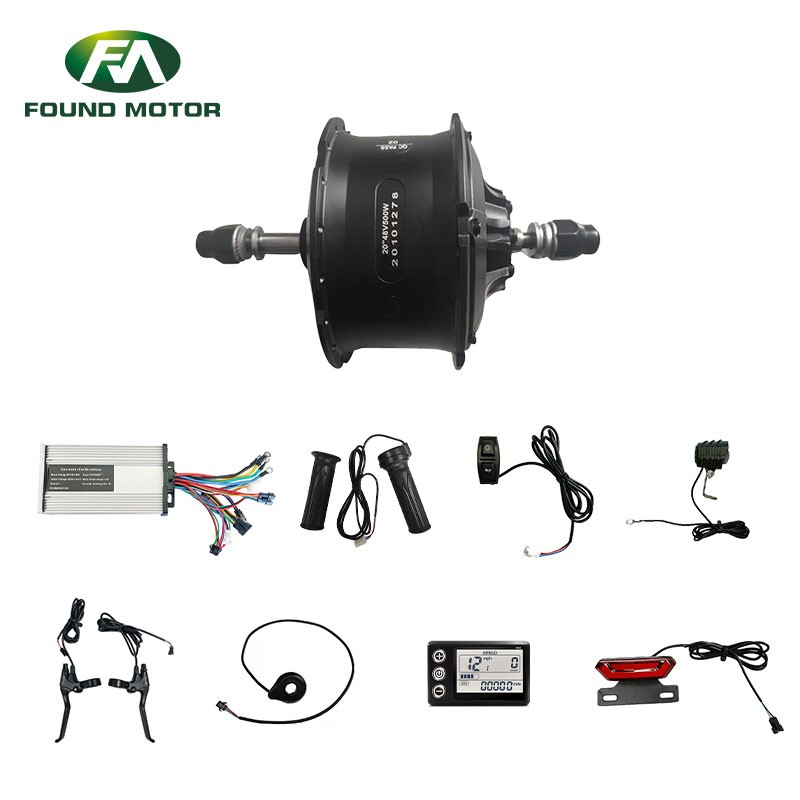

26" 48V 1000W Electric Bike BLDC Geared Rear Hub Motor Kit Ebike Conversion Kit for Electric Bicycle with 170mm Dropout

48V 1000W Electric Bike Conversion Kit | 26" Rear Hub Motor 170mm Dropout with LCD Display & Waterproof Connector

表格

复制

Component	Model	Technical Data

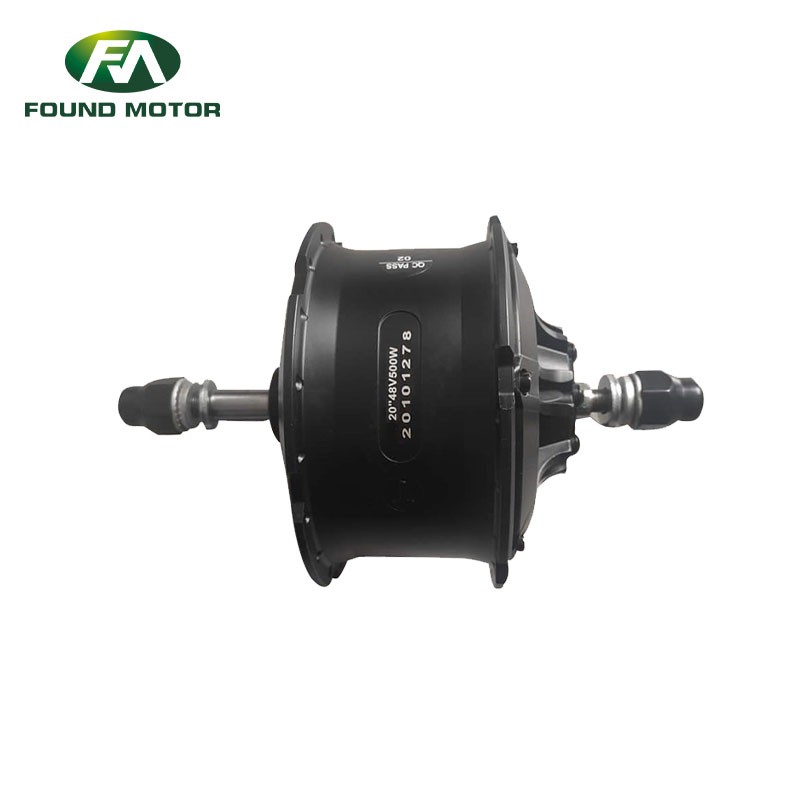

Motor	FM-01-01-N85BR	48V 1000W BLDC geared rear-drive spoke motor, rated speed 45KM/H, 26" wheel
Dropout	170mm (Open Size)	Compatible with 6-9 speed freewheel, disk brake cover left, motor cable left

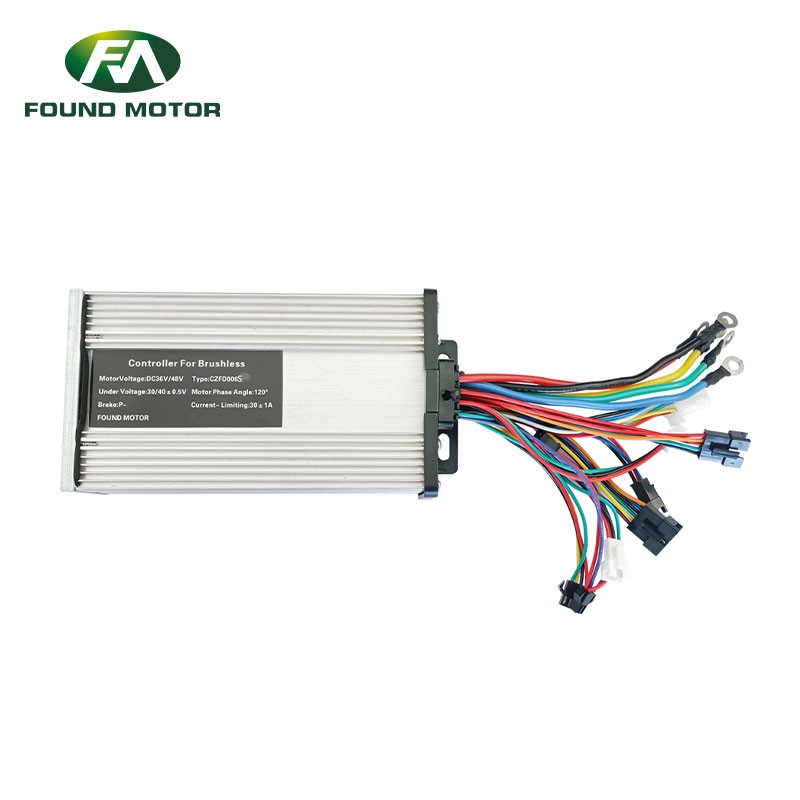

Controller	CZFD003S-E	DC 36V/48V dual voltage sine wave controller, current-limiting 30±1A, reduction ratio 1:5, 1-5 level PAS, 8S auto cruise

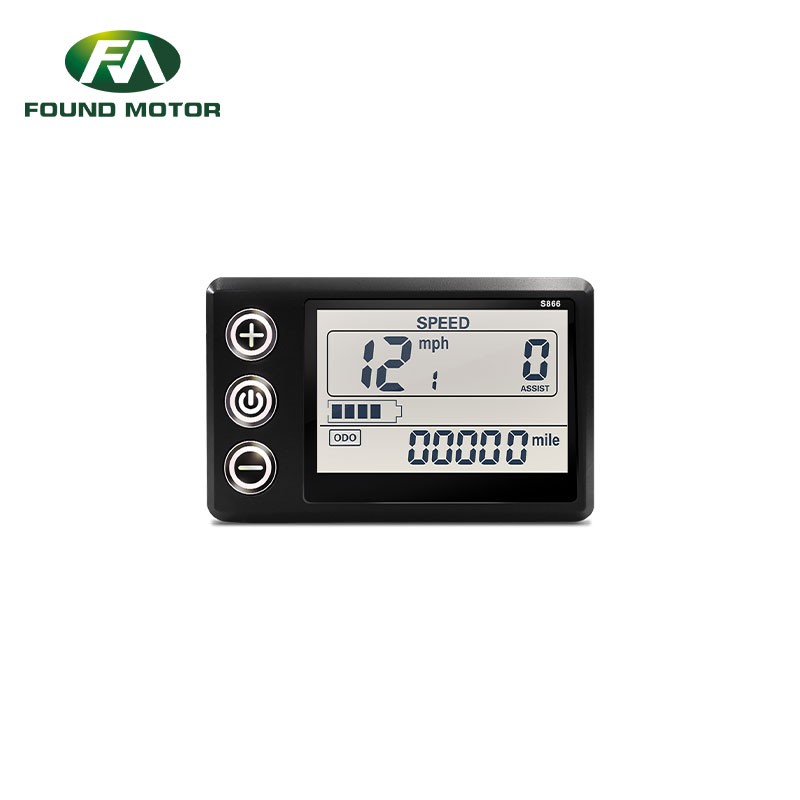

LCD Display	S866	LCD display with battery indicator, speed, 5-level PAS, walk speed 6km/h, ODO/TRIP, SW02 protocol, cable length 1500mm

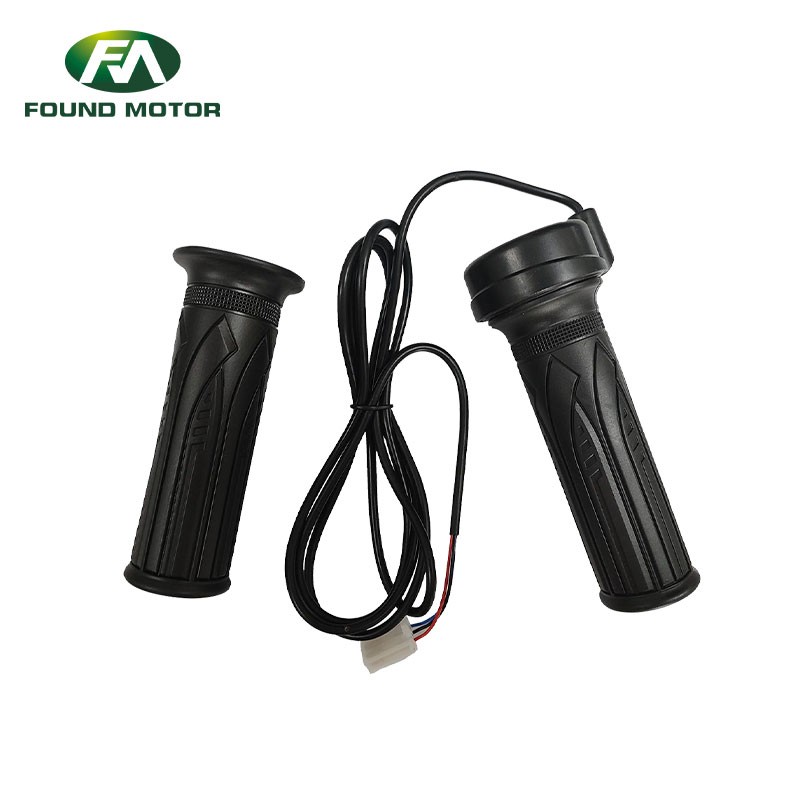

Throttle	TT70	Throttle with normal connector, cable length 1500mm
Brake Lever	N133	Brake lever with motor cut-off switch, normal connector, cable length 1500mm
PAS Sensor	SW003	Dual hall sensors, 12 magnets, left side mounting, cable length 600mm, normal connector
Switch	DK21-1S	Light/horn switch with normal connector, cable length 1500mm

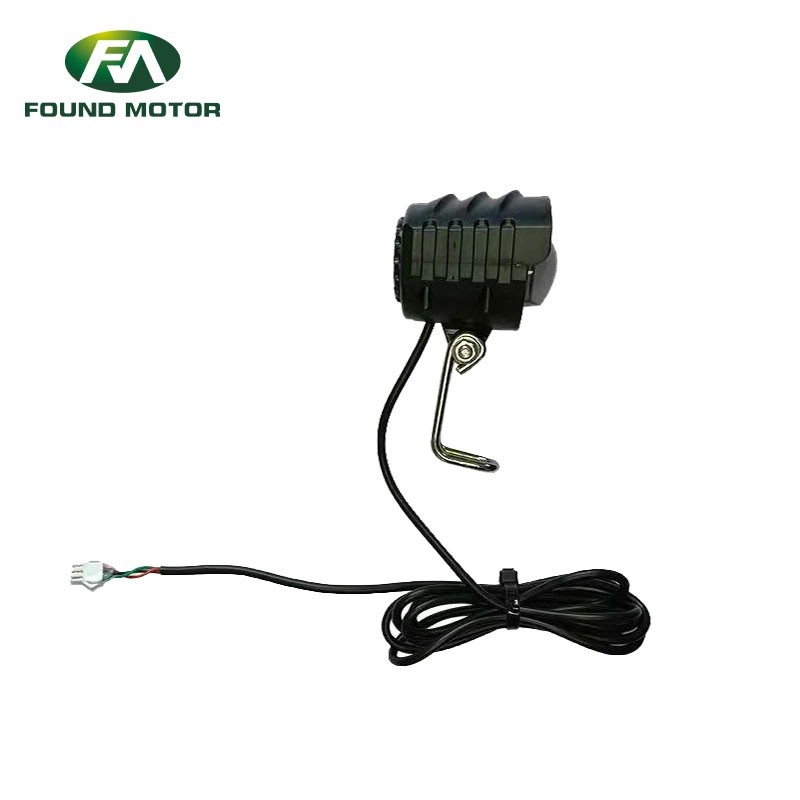

Front Light	D-022	Integrated front light and horn, normal connector, cable length 1500mm

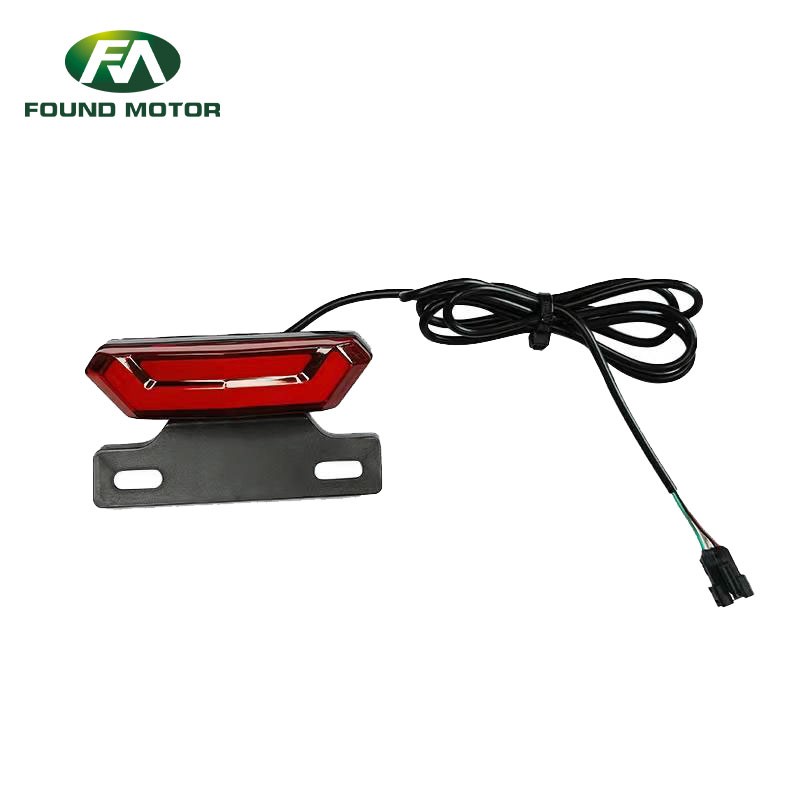

Rear Light	WD-10C	Rear light with brake light function, normal connector, cable length 1500mm
Cable System	Waterproof	Motor waterproof connector with 200mm extension cable + 800mm normal connector
Customization	OEM Available	Customized logo on motor shell, color options: black/silver, includes Dacro screws, gaskets and black rubber sleeve
