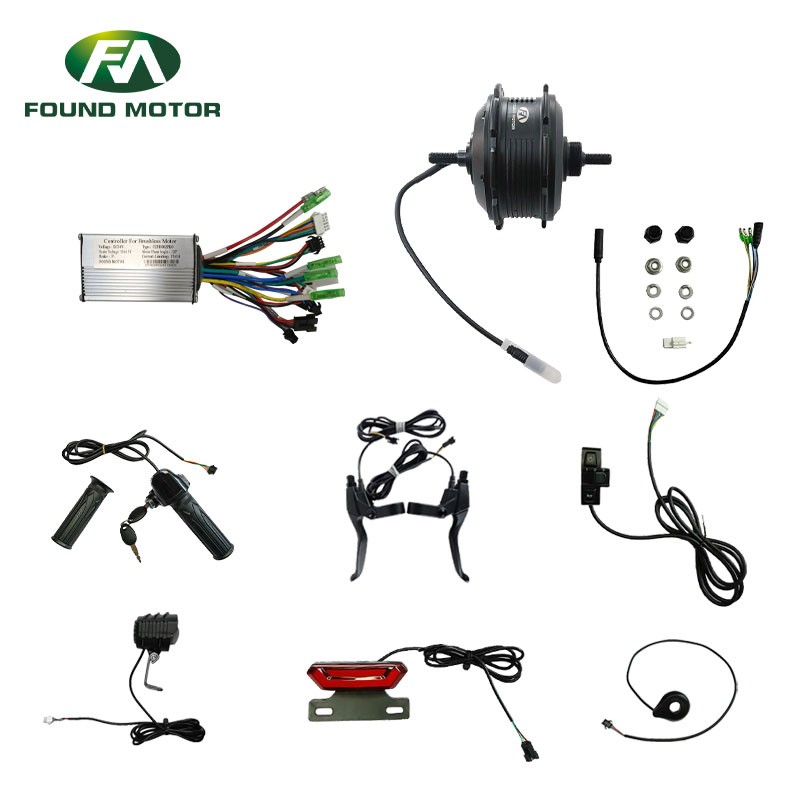

26" 36V 250W Waterproof Electric Bike Conversion Kit BLDC Hub Motor Kit with Sine Wave Controller Dropout 125mm for Electric Bicycle

Component	Model	Technical Data

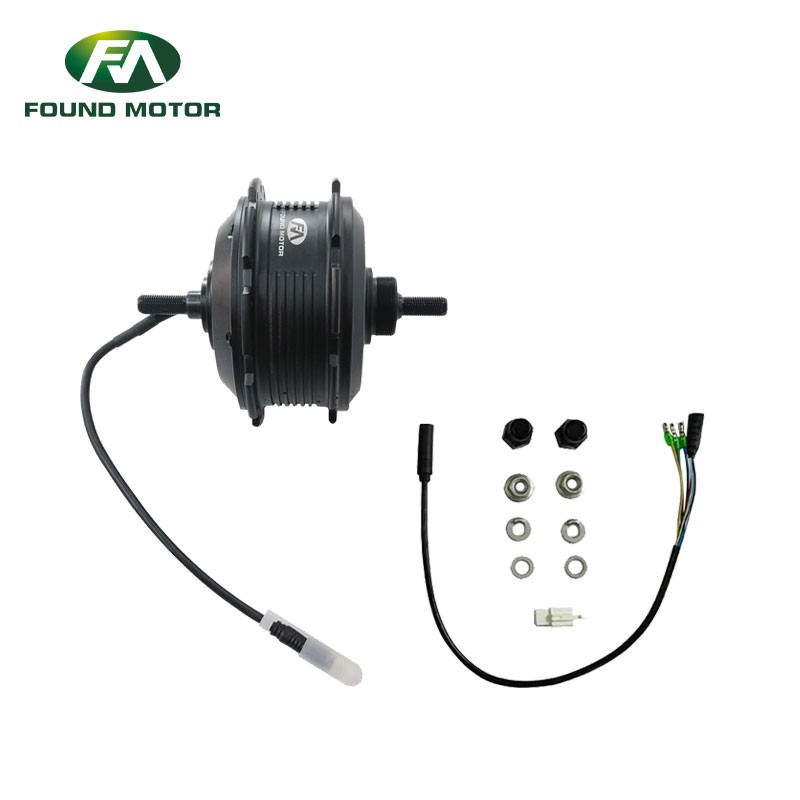

Motor Options	FM-01-01-N92Z	36V 250W BLDC geared rear-drive, 125mm dropout, 26" wheel, 30KM/H rated speed
Controller	CZFD003PRO	DC 36V sine wave controller, current-limiting 15±1A, 8S auto cruise function

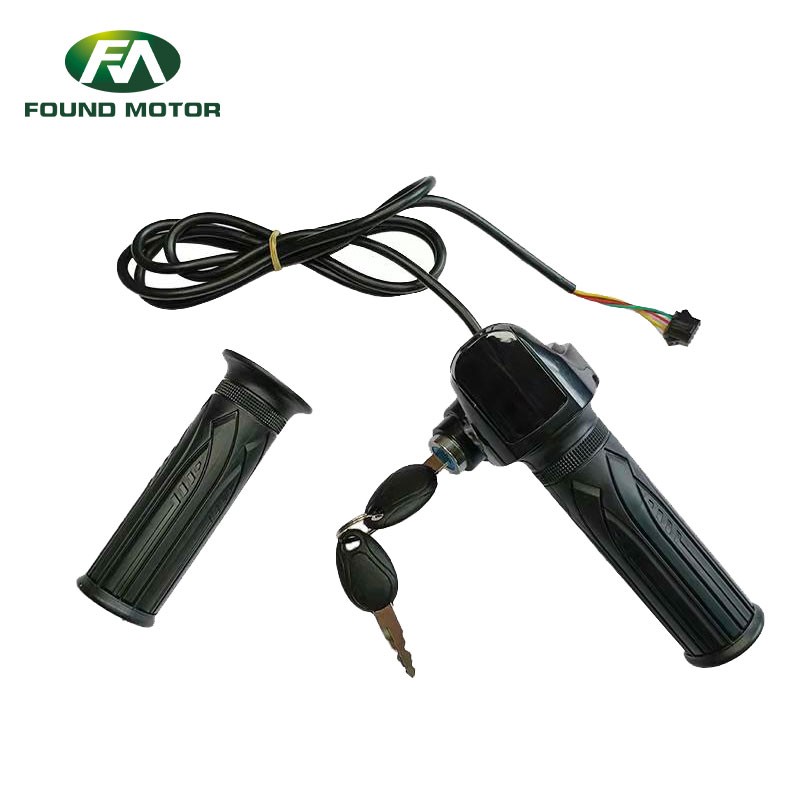

Throttle	TT87	Full twist throttle with battery indicator, electronic lock, 1500mm cable

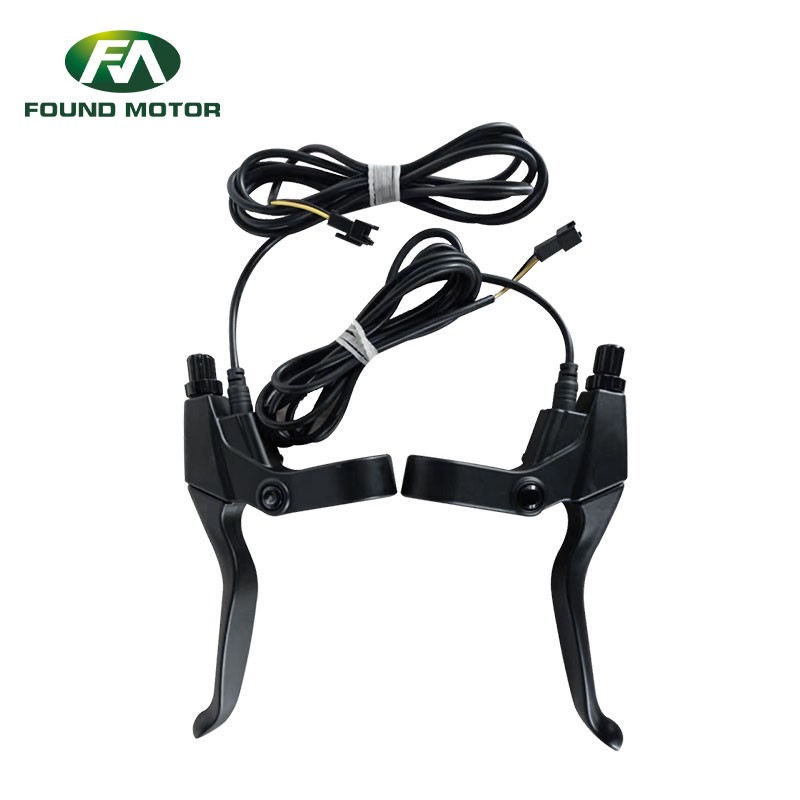

Brake Lever	N133	Brake lever with motor cut-off switch, normal connector, 1500mm cable

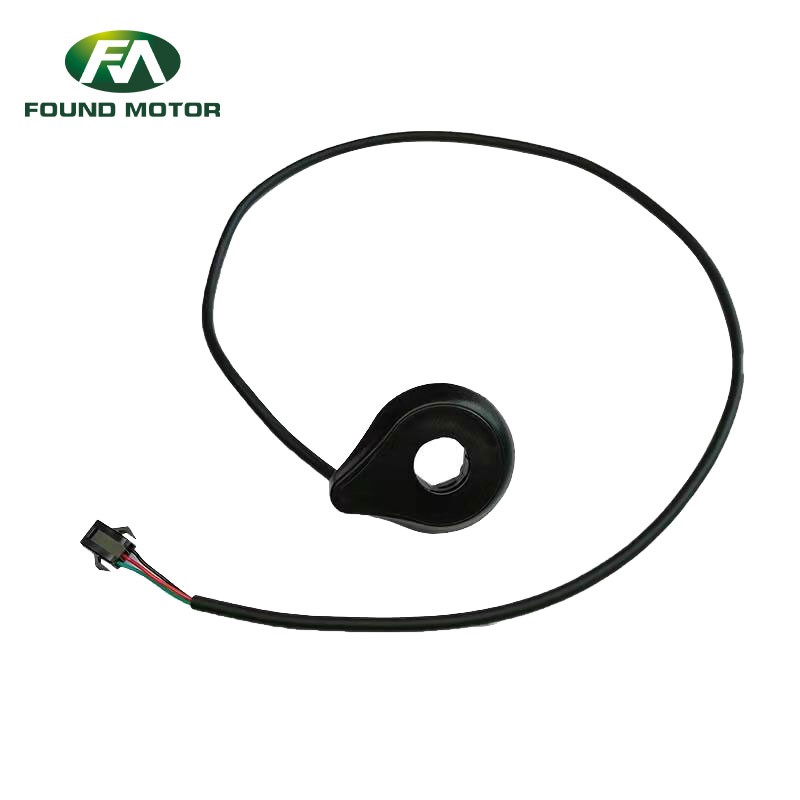

PAS Sensor	SW003	Dual hall sensors, 12 magnets, left side mounting, 600mm cable

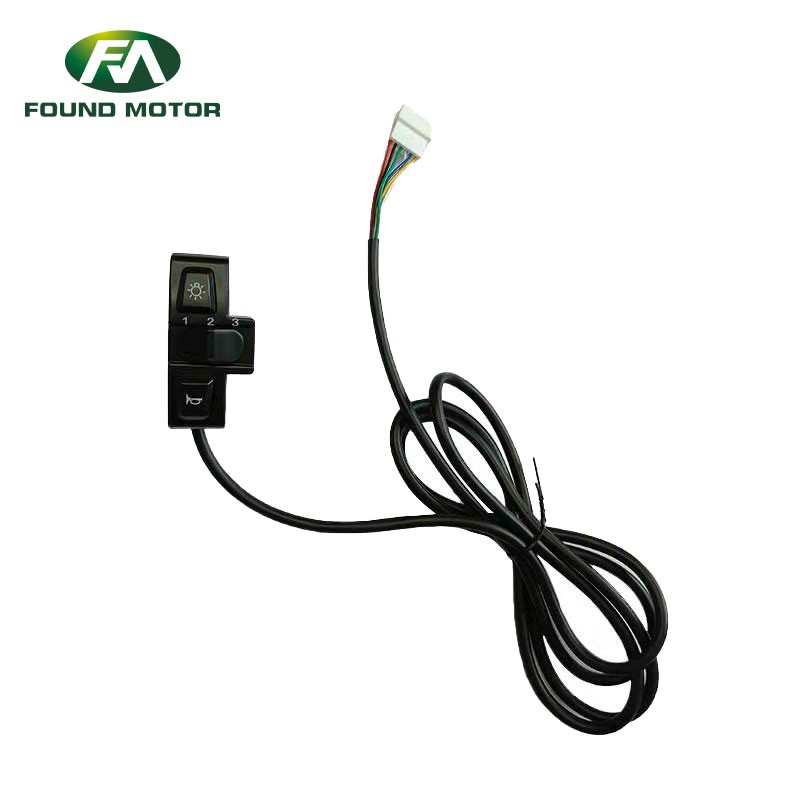

Switch	DK31-1S	Light/horn switch with 3-level PAS adjustment, 1500mm cable

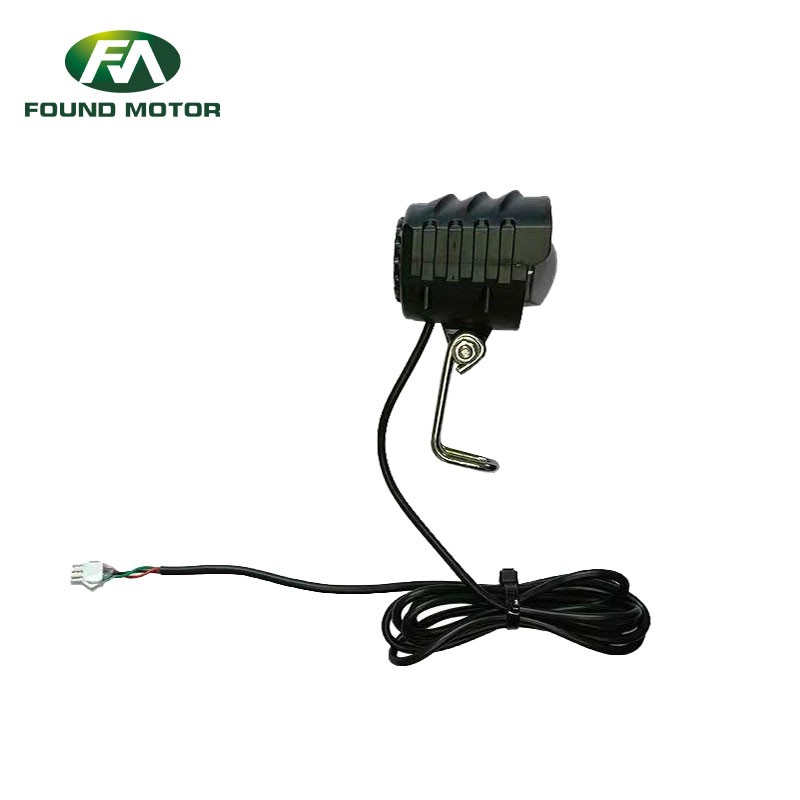

Front Light	D-022	Integrated front light and horn unit, 1500mm cable

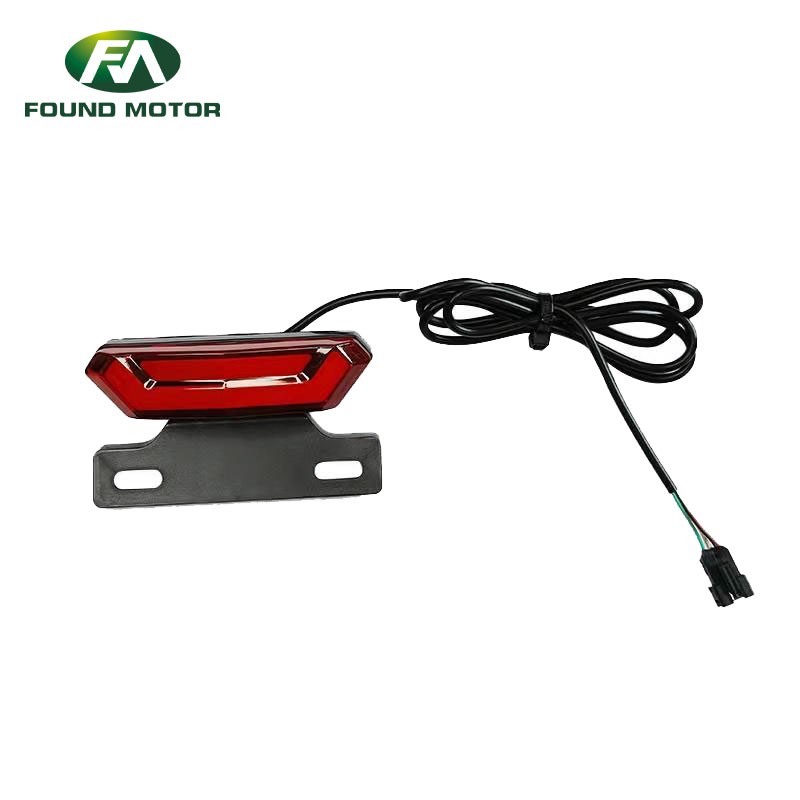

Rear Light	WD-10C	Rear light with brake light function, 1500mm cable
Cable System	Waterproof	Motor cable with waterproof connector + 260mm extension + 500mm normal connector
Installation	Standard	Disk brake cover left, motor cable left, includes Dacro screws, gaskets, rubber sleeve
Customization	OEM	Customized logo available on motor shell, black/silver color options
