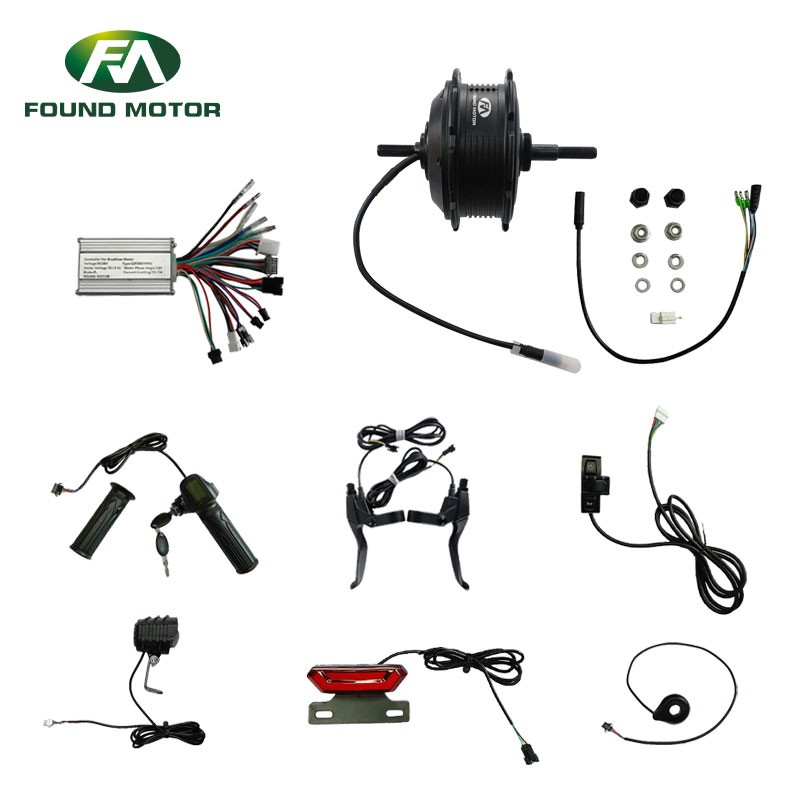

26"36V 250W BLDC Geared Hub Motor Electric Bicycle Conversion Kit

Product name	Product Code	Specifications

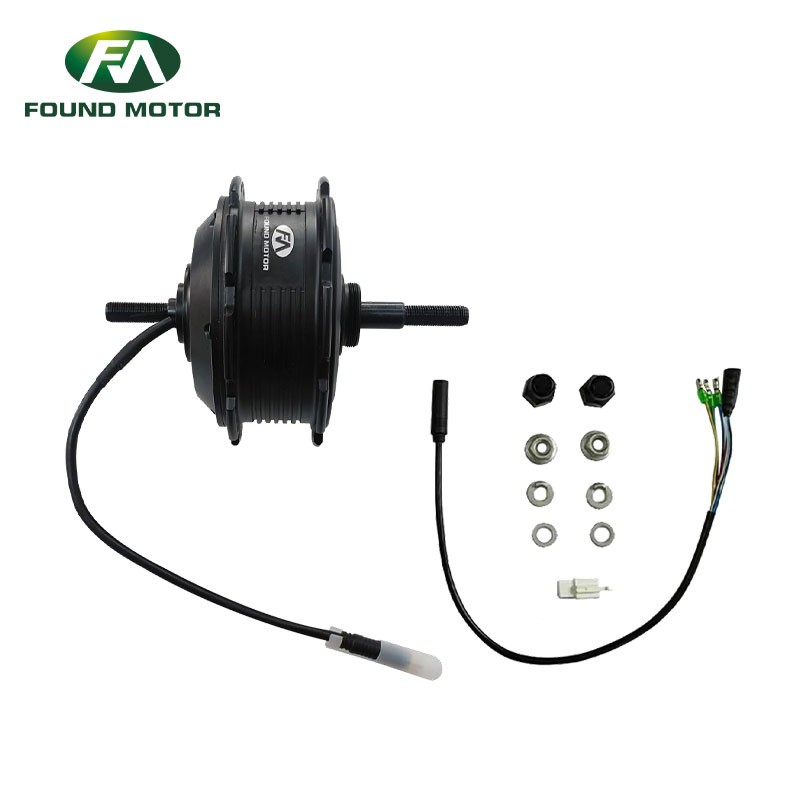

Motor Optional	FM-01-01-N92Z	1.26"36V 250W BLDC Geared rear drive spoke motor,rated speed 30KMH 2.Dropout - 125mm(open size) 3.Waterproof cable with connector 260mm extension cable with normal connnector 500mm 4.Disk brake cover left,motor cable left 5.Color:black/silver 6.With Dacro screws, gaskets, black rubber sleeve 7.Customized LOGO available
Motor Optional	FM-01-01-N92H	1.26"36V 250W BLDC Geared rear drive spoke motor,rated speed 30KMH 2.Dropout - 135mm(open size),6-9 speed 3.Waterproof cable with connector 260mm extension cable with normal connnector 500mm 4.Disk brake cover left,motor cable left 5.Color:black/silver 6.With Dacro screws, gaskets, black rubber sleeve 7.Customized LOGO available

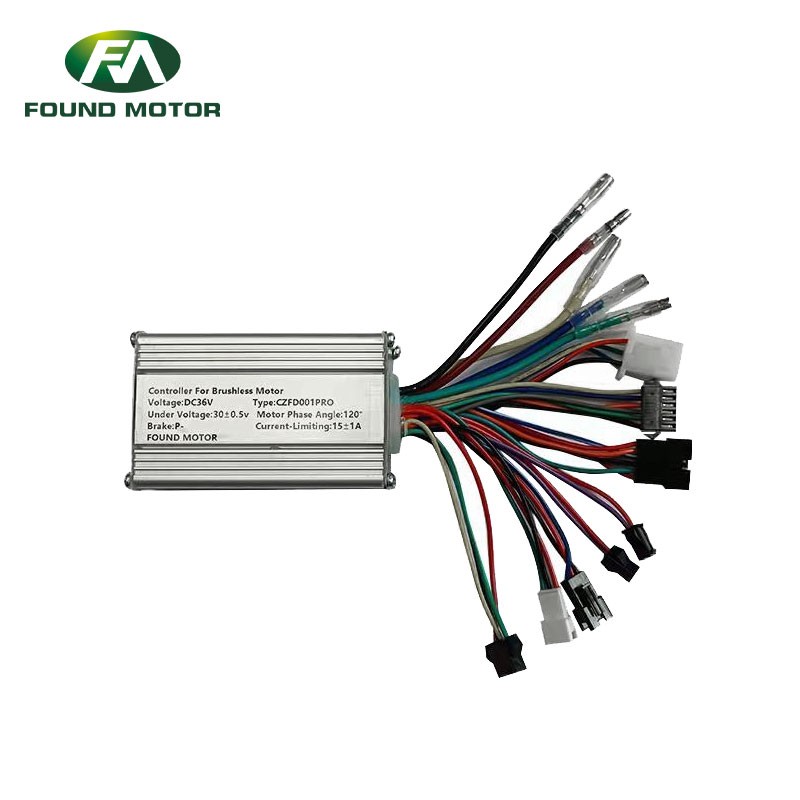

Controller	CZFD001PRO	1.DC 36V, Sinewave controller. 2.Current-limiting 15±1A. 3.Normal connector:Motor cable,battery cable,throttle with battery indicate,speed,trip,voltage,brake lever,switch,front light,3 level PAS,8S auto cruise.

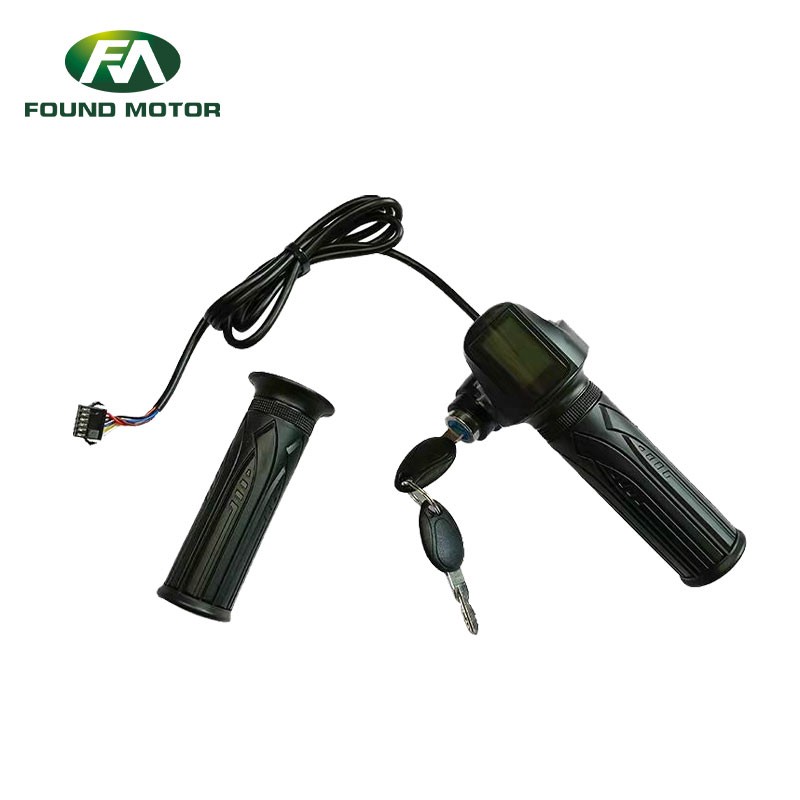

Throttle	TT87PRO	1.Full twist throttle with battery indicate and lock,with speed,trip,voltage,normal connector 2.Cable length 1500mm 3.Full twist throttle,half twist throttle 4.Different kinds grips optional

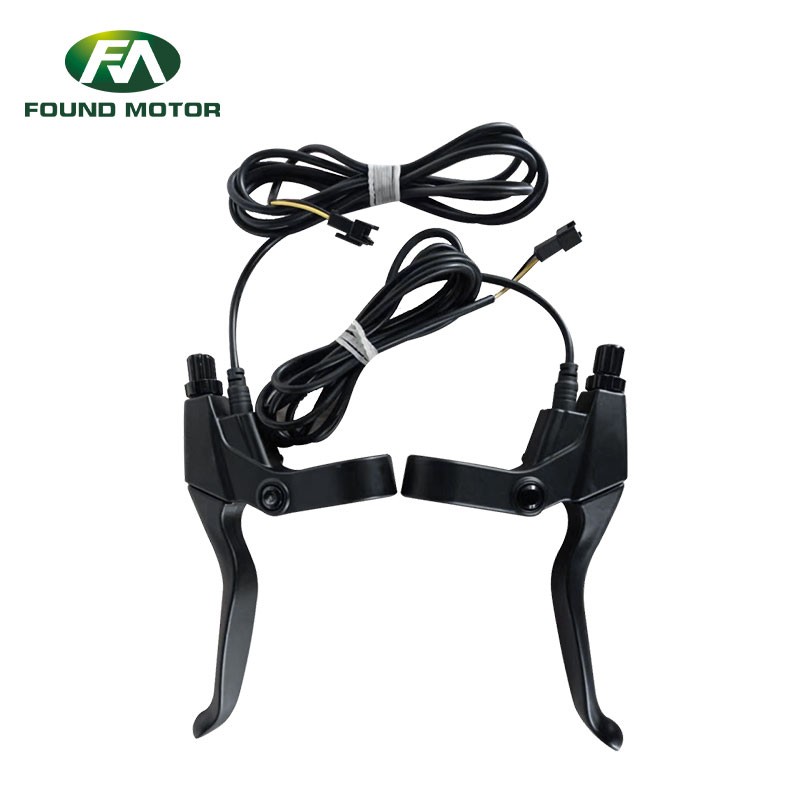

Brake lever	N133	1.Brake lever with normal connector 2.Cable length 1500mm

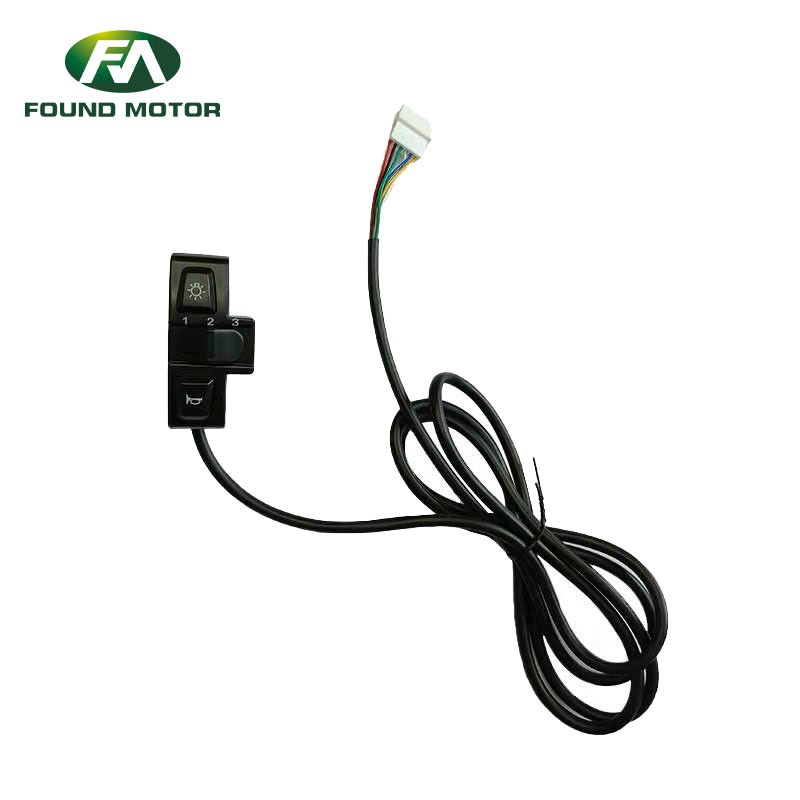

Switch	DK31-1S	1.Light/horn switch with normal connector 2.3 level PAS 3.Cable length 1500mm

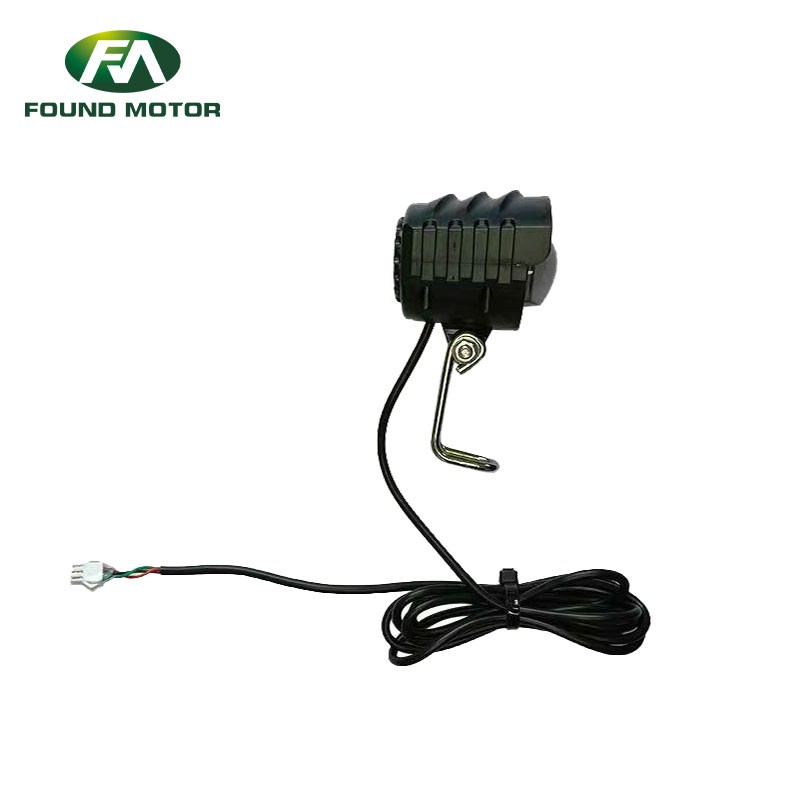

Front light	D-022	1.Front light and horn with normal connector 2.Cable length 1500mm

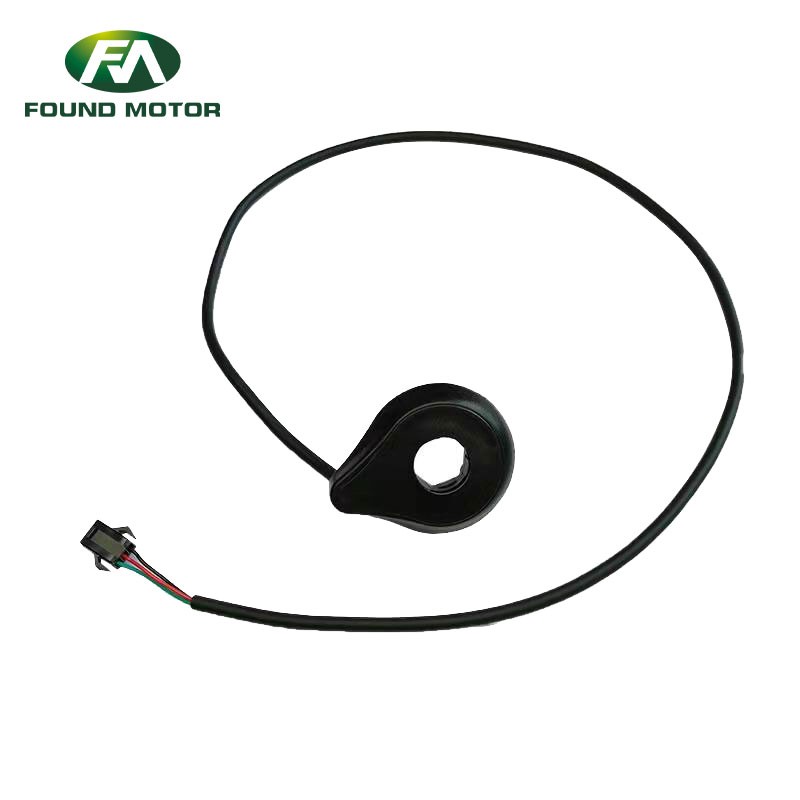

PAS	SW003	1.Double sensors,12 magnets, Left side 2.Cable length 600mm,normal connector
Rear light	WD-10C	1.Rear light with brake light,normal connector 2.Cable length 1500mm
