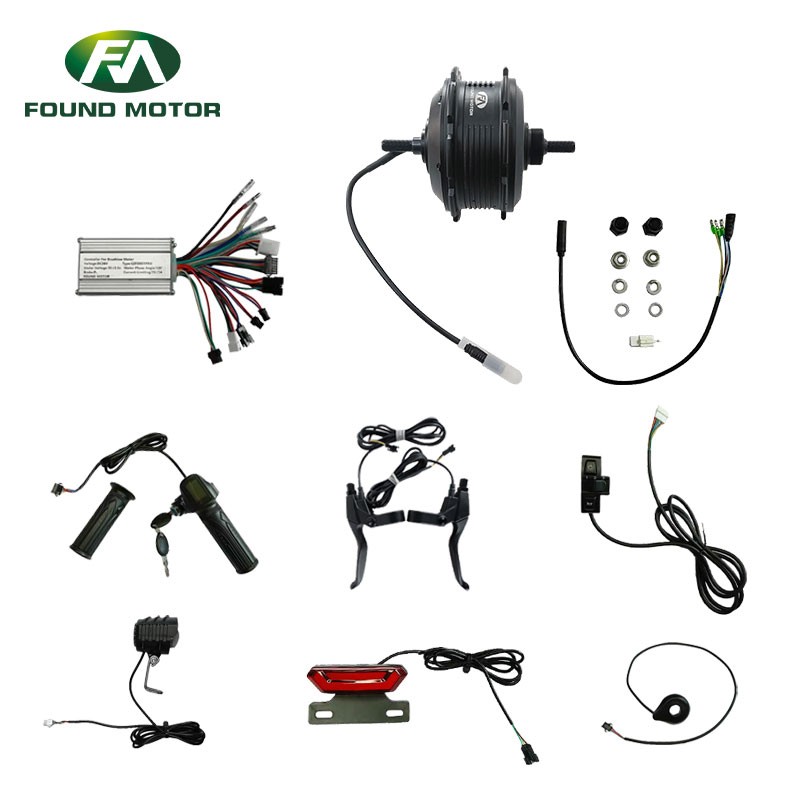

FOUNDMOTOR 36V 250W Electric Bike Conversion Kit for 26" Wheel with Waterproof Connector

36V 250W Electric Bike Conversion Kit | 26" Rear Hub Motor with PAS & LCD Throttle | OEM Logo Available

Specification

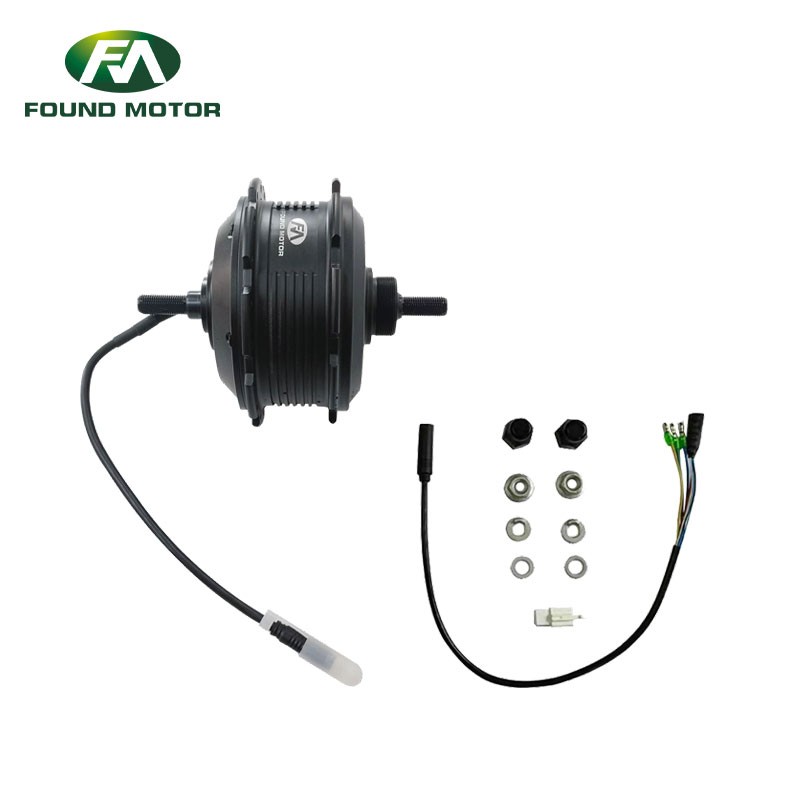

Motor	FM-01-01-N92H	36V 250W BLDC geared rear-drive spoke motor, rated speed 30KM/H, 26" wheel
Dropout	135mm (Open Size)	Compatible with 6-9 speed freewheel, disk brake cover left, motor cable left

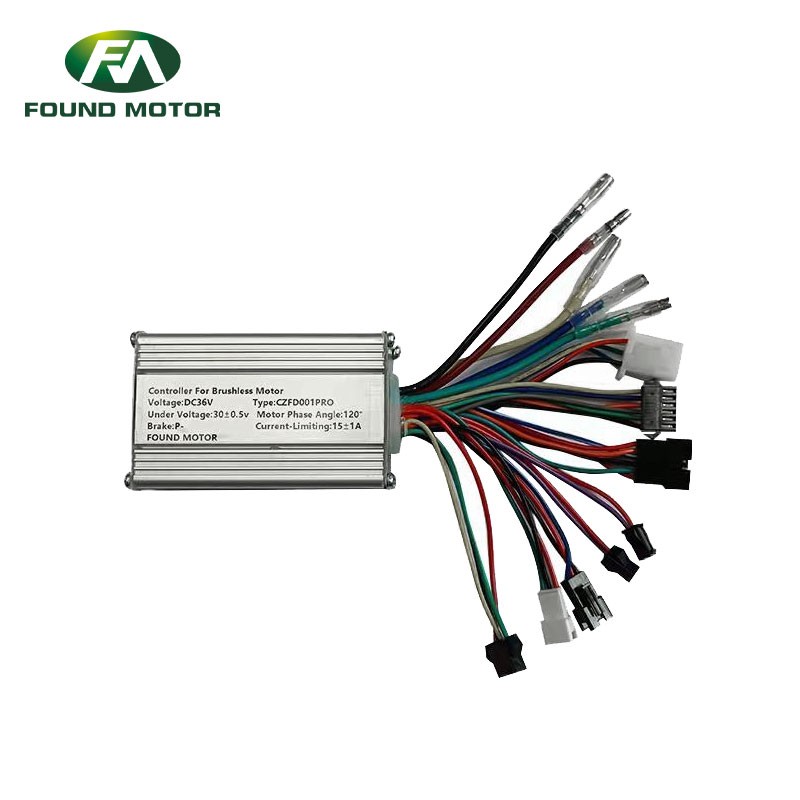

Controller	CZFD001PRO	DC 36V sine wave controller, current-limiting 15±1A, 3-level PAS, 8S auto cruise
Throttle	TT87PRO	Full twist throttle with battery indicator, lock, speed/trip/voltage display, cable 1500mm

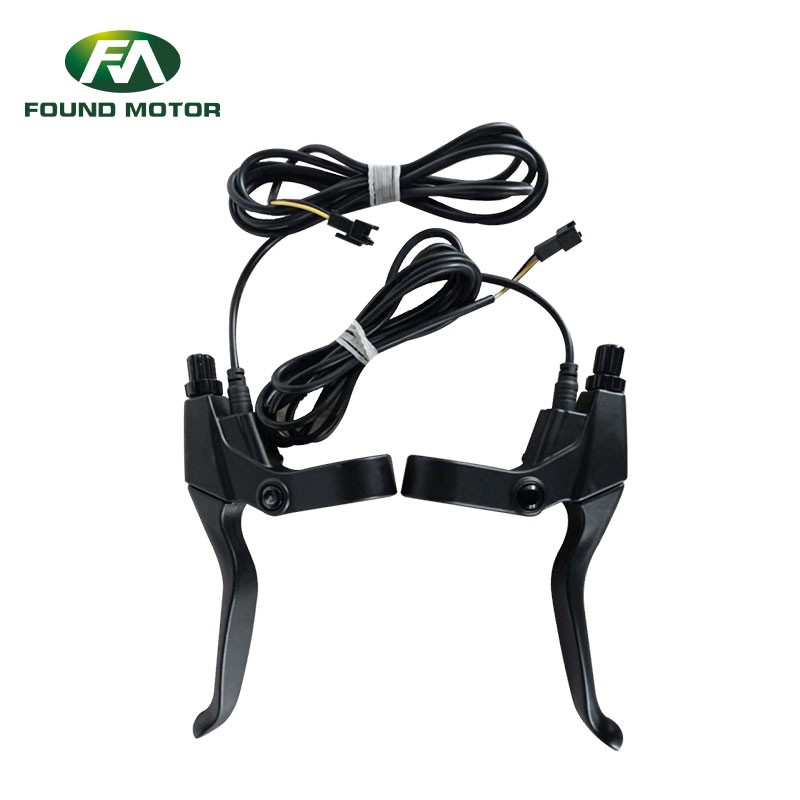

Brake Lever	N133	Brake lever with motor cut-off switch, cable length 1500mm

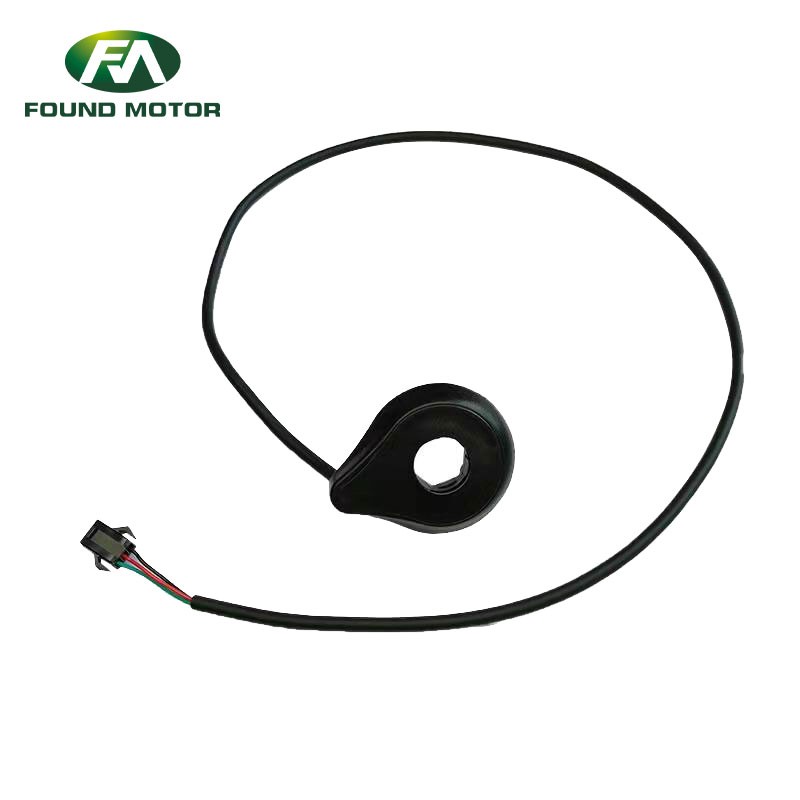

PAS Sensor	SW003	Dual hall sensors, 12 magnets, left side mounting, cable 600mm

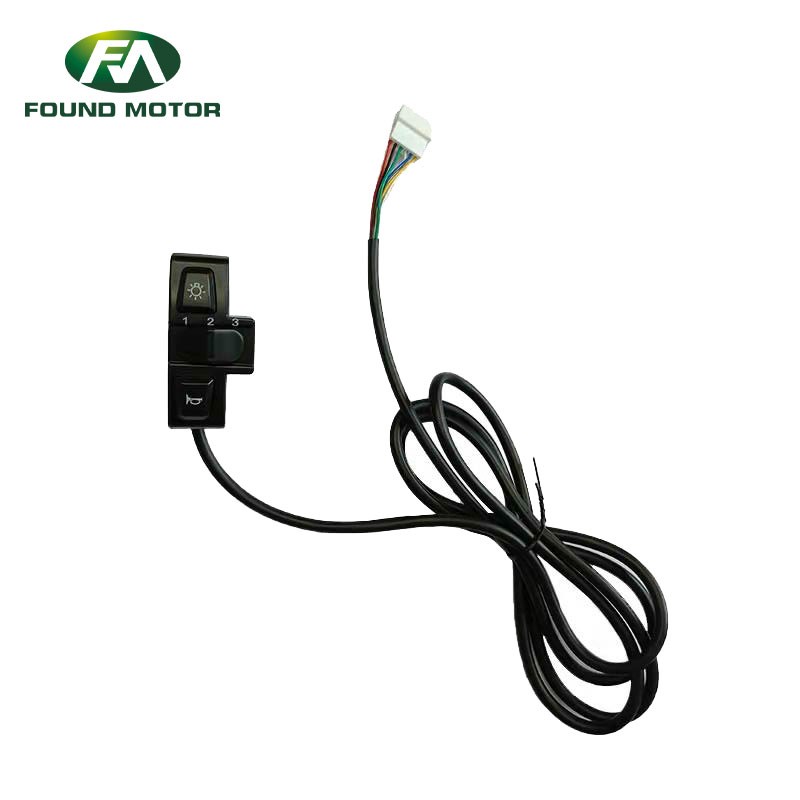

Switch	DK31-1S	Light/horn switch with 3-level PAS adjustment, cable 1500mm

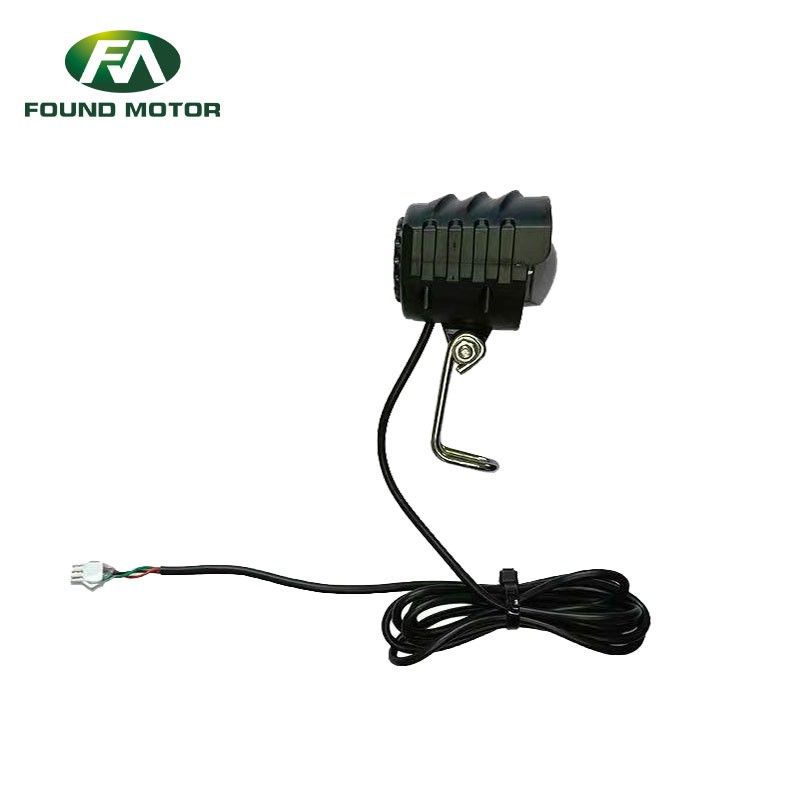

Front Light	D-022	Integrated front light and horn, cable 1500mm
Rear Light	WD-10C	Rear light with brake light function, cable 1500mm
Connectors	Waterproof + Normal	Motor waterproof connector with 260mm extension; normal connector 500mm
Customization	OEM Available	Customized logo on motor shell, color options: black/silver, with Dacro screws and gaskets
